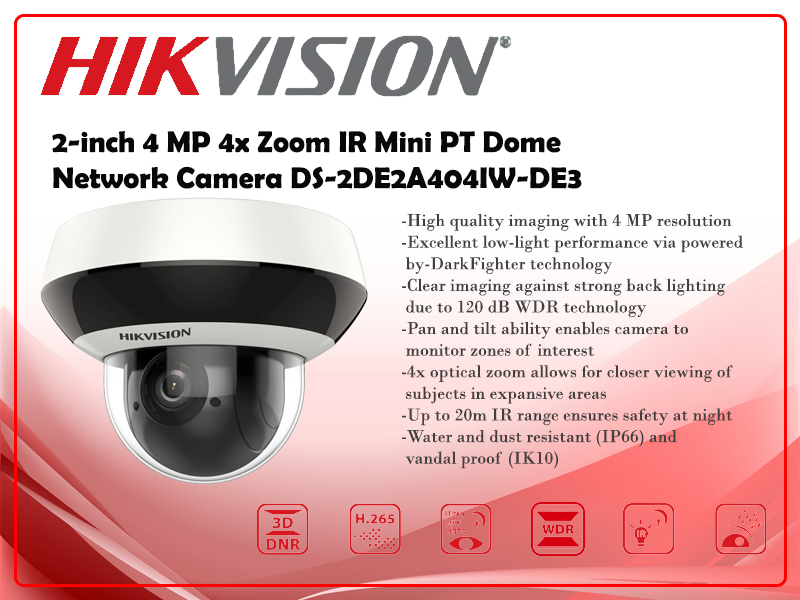

กล้องวงจรปิด HIKVISION Mini PTZ รุ่น DS-2DE2A404IW-DE3
- 1/3" progressive scan CMOS
- Up to 2560 × 1440@25fps resolution
- Min. illumination:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
- 4× optical zoom, 16× digital zoom
- 120 dB WDR, 3D DNR, HLC, EIS, Regional Exposure, Regional Focus
- 12 VDC & PoE
- Up to 20 m IR distance
- IK10, IP66
- Support H.265+/H.265 video compression
| Camera |
| Image Sensor: |
|
1/3" progressive scan CMOS |
| Effective Pixels: |
|
2560(H)×1440(V) |
| Signal System: |
|
PAL/NTSC |
| Minimum Illumination: |
|
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR |
| White Balance: |
|
Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC: |
|
Auto/Manual |
| HLC: |
|
Support |
| WDR: |
|
120dB |
| Shutter Time: |
|
50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s |
| Day& Night: |
|
ICR |
| Digital Zoom: |
|
16× |
| Privacy Mask: |
|
24 programmable privacy masks |
| Auto Focus: |
|
Auto / Semi-automatic / Manual |
| Lens |
| Focal Length: |
|
2.8 to 12mm, 4× optical zoom |
| Zoom Speed: |
|
Approx. 2s (optical lens, wide-tele) |
| Field of View: |
|
Horizontal field of view: 100° to 33° (Wide-Tele)
Vertical field of view: 53° to 18° (Wide-Tele)
Diagonal field of view: 119° to 37.5° (Wide-Tele) |
| Minimum Working Distance: |
|
10 to 1500mm (wide-tele) |
| Aperture Range: |
|
F1.6 to F2.7 |
| Pan & Tilt |
| Pan Range: |
|
0° to 330° |
| Pan Speed: |
|
Configurable, from 0.1°/s to 100°/s,
Preset speed: 100°/s |
| Tilt Range: |
|
Tilt: 0°~90° |
| Tilt Speed: |
|
Configurable, from 0.1°/s to 100°/s
Preset Speed: 100°/s |
| Proportional Zoom: |
|
Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: |
|
300 |
| Power-off Memory: |
|
Support |
| Infrared |
| IR Distance: |
|
20m |
| IR irradiation angle: |
|
Adjustable by zoom |
| Input & Output |
| Audio Input: |
|
1-ch audio input |
| Audio Output: |
|
1-ch audio output |
| Network |
| Ethernet: |
|
10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution: |
|
2560 × 1440 |
| Main Stream: |
|
50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 24fps (2560 × 1440), 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream: |
|
50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
| Third Stream: |
|
50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression: |
|
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG |
| ROI encoding: |
|
Support 2 areas with adjustable levels |
| Audio Compression: |
|
G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
| Audio Mode: |
|
OFF/Audio input/Audio output |
| Protocols: |
|
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View: |
|
Up to 20 channels |
| Three-Stream: |
|
Support |
| Storage: |
|
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
| User/Host: |
|
Up to 32 users, 3 levels: Administrator, Operator and User |
| Security Measures: |
|
User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering |
| General |
| Power Supply: |
|
12 VDC & PoE |
| Power Consumption: |
|
Max.: 12 W (Max. 3.9 W for IR) |
| Working Temperature/Humidity: |
|
-20°C to 60°C (-4°F to 140°F) |
| Protection Level: |
|
IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material: |
|
Aluminum alloy, PC, PC+ABS |
| Dimensions: |
|
Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00") |
| Weight (approx.): |
|
Approx. 0.53 kg (1.17 lb) |
|
