| รหัสสินค้า | IPC8542ER5DUG |
| หมวดหมู่ | Pro Series OMNVIEW |
| ราคา | 0.00 บาท |
| สถานะสินค้า | พร้อมส่ง |
| สภาพ | สินค้าใหม่ |
| ลงสินค้า | 6 ก.พ. 2565 |
| อัพเดทล่าสุด | 6 ก.พ. 2565 |
| คงเหลือ | ไม่จำกัด |
| จำนวน | ชิ้น |

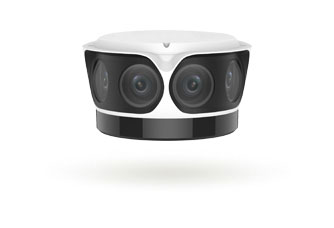

| IPC8542ER5-DUG | ||||||
| Camera | ||||||
| Sensor | 1/1.8" progressive scan, 2.0 megapixel, CMOS | |||||
| Lens | 4×4.2mm lens | |||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |
| 4.2mm | 50.4 (165.4ft) | 20.2(66.3ft) | 10.1(33.1ft) | 5.0(16.4ft) | ||
| Angle of View (H) | 180° | |||||
| Angle of View (V) | 80° | |||||
| Angle of View (O) | 221.4° | |||||
| Adjustment angle | Pan: -90°~90° | Tilt: -45°~60° | ||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | |||||
| Minimum Illumination | Colour: 0.002lux (F1.8,AGC ON) 0lux with IR |
|||||
| Iris | F1.8 | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| S/N | >55 dB | |||||
| IR Range | UP to 50m (164ft) | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Video | ||||||
| Video Compression | Ultra H.265,H.265, H.264, MJPEG | |||||
| Frame Rate | Main Stream: 4096×1800:Max. 30 fps; Sub Stream: 1920×832:Max. 30 fps; Third Stream: 1280×560: Max. 30 fps; Fourth Stream: 1280×560: Max. 30 fps; Fifth Stream: 1280×560: Max. 30 fps; |
|||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 8 areas(8 blacks/8 mosaics) | |||||
| ROI | Up to 8 areas | |||||
| Smart | ||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Two-way Audio | Supported | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHz | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256 GB | |||||
| Network Storage | ANR | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,QoS | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||
| Interface | ||||||
| Audio I/O | 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | |||||
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | ||||||
| Serial Port | 1 RS485 | |||||
| Alarm I/O | 2/1 | |||||
| Network | 1*100M/1000M Base-FX SFP + 2*10M/100M/1000M Base-TX Ethernet | |||||
| General | ||||||
| Power | AC24V±25%/DC24V support 18V-48V | |||||
| Power consumption: 45W MAX | ||||||
| Dimensions | 259mmx211mmx115mm((10.2”×8.3”×4.5”)) | |||||
| Weight | 2.4kg(5.3lb) | |||||
| Working Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity:10%~95% RH(non-condensing) | |||||
| Ingress Protection | IP67 | |||||
| Reset Button | Supported | |||||
