รหัสสินค้า	IPC6854SLX40WUPVC
หมวดหมู่	PTZ Camera Pro
ราคา	0.00 บาท
สถานะสินค้า	พร้อมส่ง
สภาพ	สินค้าใหม่
ลงสินค้า	8 ก.พ. 2565
อัพเดทล่าสุด	8 ก.พ. 2565
คงเหลือ	ไม่จำกัด
จำนวน	ชิ้น

Camera
Sensor	1/1.8", 4.0 megapixel, progressive scan, CMOS
Lens	5.7 ~ 228mm, AF automatic focusing and motorized zoom lens
Digital Zoom	16
Optical Zoom	40
DORI Distance	Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
	5.7	107.2(351.8ft)	42.9(140.7ft)	21.4(70.4ft)	10.7(35.2ft)
	228	3330.6(10927.2ft)	1332.2(4370.9ft)	666.1(2185.4ft)	333.1(1092.7ft)
Angle of View (H)	58.5° ~ 2.1°
Angle of View (V)	34.9° ~ 1.2°
Angle of View (O)	72.0° ~ 2.5°
Shutter	Auto/Manual; shutter time: 1 ~ 1/100000s
Minimum Illumination	Colour: 0.0005Lux (F1.3, AGC ON) 0Lux with IR
Iris	Auto/Manual; F1.3 ~ F4.6
WDR	120dB
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>56dB
VF Laser	650m(2132ft)
Wiper	Support
IR On/Off Control	Auto/Manual
Defog	Optical Defog
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 4MP (26881520), Max 60fps; Sub Stream: 2MP (19201080), Max 60fps; Third Stream: D1 (720*576), Max 60fps
Video Bit Rate	128 Kbps~16 Mbps
ROI	Up to 8 areas
Video Stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	Up to 24 blacks (Up to 8 blacks / 8 mosaics in the same picture)
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Flip	Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
EIS	Support (gyroscope)
HLC	Support
BLC	Support
Event
Basic Detection	Motion detection, Audio detection, Tampering alarm ;
Exception Detection And Statistics	Object left behind, Object removed
Auto Tracking	Support
General Function	Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR,NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Pan & Tilt
Pan Range	360° (endless)
Pan Speed	0.1°/s ~ 180°/s
	Preset speed: 300°/s
Tilt Range	-15° ~ 90° (auto reverse)
Tilt Speed	0.1°/s ~ 180°/s
	Preset speed: 240°/s
Number of Presets	1024
Patrol	Preset patrol, route patrol, recorded patrol
Home Position	Support
Interface
Audio I/O	Audio cable
	1 input: impedance 1kΩ; amplitude 2V [p-p]
	1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O	7/2
Serial Port	1 RS485
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	AC 24V ±25%, DC 24V±25%, PoE++ (IEEE 802.3bt)
	Power consumption: Max 62W
Dimensions (Ø x H)	Φ270 x 497mm (Φ10.6” x 19.6”)
Weight	9.69kg (21.4lb)
Working Environment	-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP66
Reset Button	Support

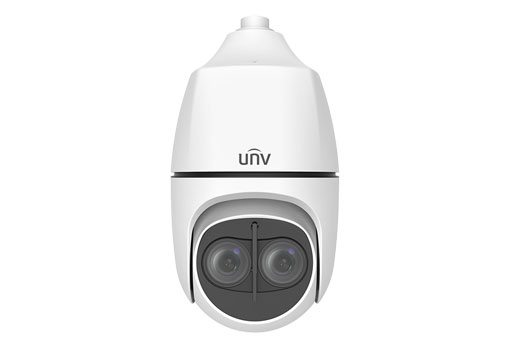

PTZ Camera Pro รุ่น 4MP 40X Lighthunter Laser IR Network Camera
