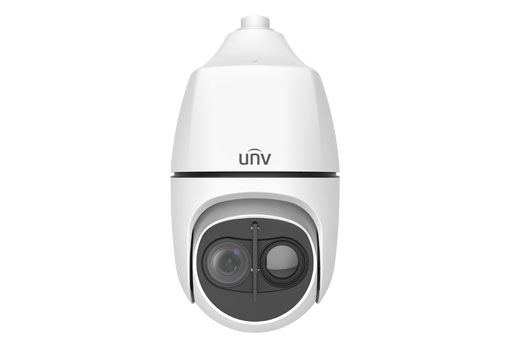

Name: Thermal Camera รุ่น 4MP Thermal & Optical Dual-spectrum Starlight PTZ Dome Camera
SKU: TIC6831ERF504X38P
Availability: InStock

รหัสสินค้า	TIC6831ERF504X38P
หมวดหมู่	Thermal Camera 4MP
ราคา	0.00 บาท
สถานะสินค้า	พร้อมส่ง
สภาพ	สินค้าใหม่
ลงสินค้า	8 ก.พ. 2565
อัพเดทล่าสุด	8 ก.พ. 2565
คงเหลือ	ไม่จำกัด
จำนวน	ชิ้น

	TIC6831ER-F50-4X38P
Optical Module
Image sensor	1/1.8", progressive scan, 4.0 megapixel, CMOS
Lens	5.7 ~ 216.6mm, AF automatic focusing and motorized zoom lens
Digital Zoom	16
Optical Zoom	38
DORI Distance	Lens（mm）	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
	5.7	97.5(319.9ft)	39(128.0ft)	19.5(64.0ft)	9.8(32.0ft)
	216.6	3030(9940.9ft)	1212(3976.4ft)	606(1988.2ft)	303(994.1ft)
Angle of View(H)	58.5°~ 2.1°
Angle of View(V)	35.0°~ 1.2°
Angle of View (O)	72.0°~ 2.5°
Shutter	Auto/Manual, shutter time: 1~1/100000 s
Minimum Illumination	Colour: 0.0005 Lux (F1.3, AGC ON) 0 Lux with IR
Iris	Auto/Manual; F1.3 ~ F4.6
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>56dB
IR Range	Up to 150m (492ft)
Defog	Optical Defog & Digital Defog
WDR	120dB
Thermal Module
Sensor type	Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution	384*288
Video format	720P(1280*720), Max 25fps
Pixel size	17μm
Response waveband	8~14μm
NETD	≤50mk
Lens(focal length)	50mm
Angle of View (H)	7.5°
Angle of View (V)	5.8°
Angle of View (O)	9.1°
Focus	Auto/Semiautomatic/Manual
Palette	Up to 20 palettes of optional color, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce
Detection Distance	Vehicle: 3480m (target size 4mx1.4m); human: 1395m (target size 1.8mx0.5m);
Recognition Distance	Vehicle: 870m (target size: 4mx1.4m); human: 349m (target size: 1.8mx0.5m);
Identification Distance	Vehicle: 497m (target size: 4mx1.4m); human: 199m (target size: 1.8mx0.5m);
Video
Compression	Ultra265, H.264, MJPEG
Frame Rate	Main Stream: 4MP (2688×1520): Max.60fps; Sub Stream: 2MP (1920×1080): Max.60fps; Third Stream: D1(720 x 576): Max.60fps;
HLC	Supported
BLC	Supported
OSD	Up to 8 OSDs
ROI	Up to 8 areas
Privacy Mask	Up to 24 areas
Motion Detection	Up to 4 areas
Event
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711U, G.711A
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR,NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Pan & Tilt
Pan Range	360° (endless)
Pan Speed	0.1°/s ~ 180°/s
	Preset speed: 300°/s
Tilt Range	-15° ~ 90° (auto reverse)
Tilt Speed	0.1° ~ 180°/s
	Preset speed: 240°/s
Number of Presets	1024
Patrol	Preset patrol, route patrol, recorded patrol
Home Position	Supported
Interface
Audio I/O	Audio cable
	Input: impedance 1kΩ; amplitude 2V [p-p]
	Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O	2/1
Serial Port	1 RS485
Video Output	N/A
Network	1 RJ45 10M / 100M Base-TX Ethernet
General
Power	AC 24V, DC 24V ±25%, PoE++ (IEEE 802.3bt) (IEEE802.3bt switch required)
	Power consumption: Max 57W
Dimensions (Φ × H)	Φ270mm × 496.7mm (Φ10.6" × 19.6")
Weight	10.22kg (22.53lb)
Working Environment	-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection	6KV
Vandal Resistant	N/A
Ingress Protection	IP66

Thermal Camera รุ่น 4MP Thermal & Optical Dual-spectrum Starlight PTZ Dome Camera

รายละเอียดสินค้า

Optics

Compression

Network

Structure
