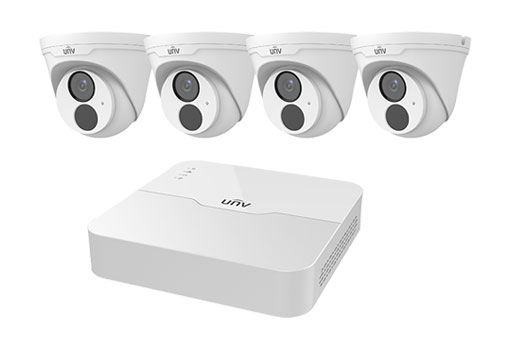

Name: Network Video Recorder Easy Series รุ่น KIT/301-08LB-P8/4*3612LR3-PF28-D
SKU: KIT/30108LBP8/4*3612LR3PF28D
Availability: InStock

รหัสสินค้า	KIT/30108LBP8/4*3612LR3PF28D
หมวดหมู่	Easy Series PoE Kit
ราคา	0.00 บาท
สถานะสินค้า	พร้อมส่ง
สภาพ	สินค้าใหม่
ลงสินค้า	8 ก.พ. 2565
อัพเดทล่าสุด	8 ก.พ. 2565
คงเหลือ	ไม่จำกัด
จำนวน	ชิ้น

Model	NVR301-08LB-P8
Video/Audio Input
IP Video Input	8-ch
Network
Incoming Bandwidth	40Mbps
Outgoing Bandwidth	40Mbps
Remote Users	128
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output	HDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution	1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback	8-ch
Corridor Mode Screen	3/4/5/7/9
Decoding
Decoding format	Ultra 265/H.265/H.264
Liveview/ Playback	1080p/960p/720p/D1/2CIF/CIF
Capability	4 x 1080p@20, 4 x 720p@30
Hard Disk
SATA	1 SATA interface
Capacity	up to 6TB for each disk
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel：2 x USB2.0
PoE
Interface	8 independent 100 Mbps PoE network interfaces
Max Power	Max 30W for single port
Supported Standard	IEEE 802.3at, IEEE 802.3af
General
Power Supply	48~52V DC Power Consumption: ≤5.5 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)	270mm × 205mm × 47mm(10.6"×8.1"×1.9")
Weight ( without HDD )	0.7kg ( 1.54lb )
Model	IPC3612LR3-PF28-D
Sensor	1/2.7", 2megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0
DORI Distance	Lens	Detect(m)		Observe(m)		Recognize(m)		Identify(m)
	2.8mm	46.7		18.7		9.3		4.7
Angle of view(H)	86.5°				112.7°
Angle of View (V)	44.1°				60.1°
Angle of View (O)	106.4°				146.5°
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 0°~360°		Tilt: 0°~90°				Rotate: 0°~360°
Min. Illumination	Colour: 0.02 Lux (F2.0, AGC ON) 0 Lux with IR
IR Range	Up to 30m (98 ft) IR range
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
WDR	Supported
Noise Reduction	2D/3D
Video
Max. Resolution	1920×1080
Video Compression	Ultra 265,H.265,H.264,MJPEG
Frame Rate	Main Stream:1080P (19201080): Max. 25 fps; Sub Stream: 720P(1280720): Max. 25 fps; Third Stream: CIF (352*288): Max. 25fps
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SSL
Compatible Integration	ONVIF (Profile S, Profile T), API
Interface
Network	10/100M Base-TX Ethernet
General
Power	12 V DC±25%, PoE (IEEE802.3 af)
	Power consumption: Max 5.5W
Dimensions (Ø x H)	Φ118x 96 mm (Φ4.6” x 3.8”)
Weight	0.2kg (0.44lb)
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress Protection	IP67
