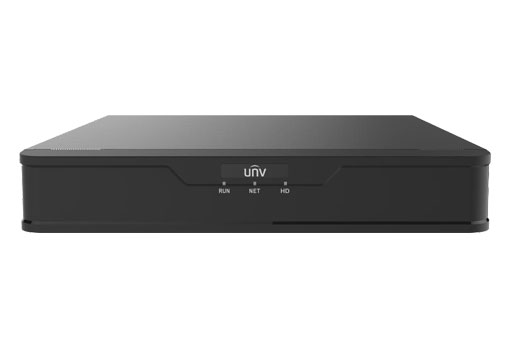

Digital Video Recorder รุ่น XVR301-16G Series

Digital Video Recorder รุ่น XVR301-16G Series
รหัสสินค้า XVR30116G Series
หมวดหมู่ Digital Video Recorder Ultra HD 2.0
ราคา 0.00 บาท
สถานะสินค้า พร้อมส่ง
สภาพ สินค้าใหม่
ลงสินค้า 8 ก.พ. 2565
อัพเดทล่าสุด 8 ก.พ. 2565
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

* Support H.265/H.264 video formats

* Support audio over coaxial cable

* Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access

* 16-channel BNC input

* Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080

* Long transmission distance over coaxial cable

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.


Model XVR301-16G
Video/Audio Input
Analog Video Input 16-ch, BNC
IP Video Input 8-ch(only IP up to 16ch), each channel up to 8MP
Supported Analog Camera Types Support AHD input: 5MP@12fps
4MP@15fps
1080P@30fps
720P@30fps
Support TVI input: 5MP@12fps
4MP@15fps
1080P@30fps
720P@30fps
Support CVI input: 1080P@30fps
720P@30fps
Support CVBS input
Audio Input 1-ch, RCA
Network
Incoming Bandwidth 40Mbps (up to 56Mbps after all analog camera conversion)
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
VGA Output 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output 1-ch, RCA
Two-way Audio 1-ch, RCA
Synchronous Playback 16-ch
Encoding
Recording Resolution 5MP Lite/4MP Lite /1080P/1080P Lite/720P/D1/CIF
Recording
Frame Rate
Main stream: Sub stream:
5MP Lite@6fps D1@6fps
4MP Lite@8fps D1@8fps
1080P Lite@15fps D1@6fps
720P@15fps D1@10fps
Hard Disk
SATA 1 SATA interface
Capacity Up to 6TB for each HDD
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 2 x USB2.0
Serial Interface 1 x RS485
General
Power Supply 12V DC
Power Consumption: ≤ 10 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 260mm ×240mm× 46mm (10.2" × 9.4"×1.8")
Weight ( without HDD ) ≤1.1 Kg ( 2.42lb )
