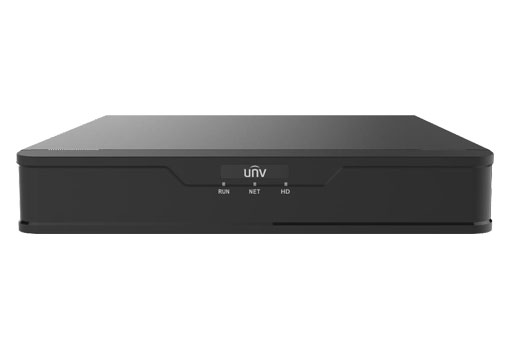

Digital Video Recorder รุ่น XVR301-Q Series

Digital Video Recorder รุ่น XVR301-Q Series
รหัสสินค้า XVR301Q Series
หมวดหมู่ Digital Video Recorder Ultra HD 2.0
ราคา 0.00 บาท
สถานะสินค้า พร้อมส่ง
สภาพ สินค้าใหม่
ลงสินค้า 8 ก.พ. 2565
อัพเดทล่าสุด 8 ก.พ. 2565
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

* Support H.265/H.264 video formats

* Support audio over coaxial cable

* Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access

* 4/8-channel BNC input

* Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080

* Long transmission distance over coaxial cable

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.



Model XVR301-04Q XVR301-08Q
Video/Audio Input
Analog Video Input 4-ch, BNC 8-ch, BNC
IP Video Input 2-ch(only IP up to 6ch), each channel up to 4K 4-ch(only IP up to 12ch), each channel up to 4K
Supported Analog Camera Types Support AHD input: 8MP@15fps(channel1)
5MP@20fps
4MP@30fps
3MP@30fps(channel1)
1080P@30fps
720P@60fps
Support TVI input: 8MP@15fps(channel1)
5MP@20fps
4MP@30fps
3MP@20fps (channel1)
1080P@30fps
720P@60fps
Support CVI input: 8MP@15fps(channel1)
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input
Support AHD input: 8MP@15fps(channel1-channel2)
5MP@20fps
4MP@30fps
3MP@30fps(channel1-channel2)
1080P@30fps
720P@60fps
Support TVI input: 8MP@15fps(channel1-channel2)
5MP@20fps
4MP@30fps
3MP@20fps(channel1-channel2)
1080P@30fps
720P@60fps
Support CVI input: 8MP@15fps(channel1-channel2)
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input
Audio Input 1-ch, RCA
Two-way Audio 1-ch, RCA
Network
Incoming Bandwidth 48Mbps 56Mbps
Outgoing Bandwidth 60Mbps 64Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
CVBS Output 1-ch, BNC
VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output 1-ch, RCA
Synchronous Playback 4-ch 8-ch
Encoding
Recording Resolution 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF
Recording
Frame Rate
Main stream: 8MP Lite@8fps(channel1)
5MP Lite@12fps
4MP Lite@15fps
3MP@15fps(channel1)
2MP@15fps
720P@30fps
Sub stream: D1@30fps(Max)
Main stream: 8MP Lite@8fps(channel1-channel2)
5MP Lite@12fps
4MP Lite@15fps
3MP@15fps(channel1-channel2)
2MP@15fps
720P@30fps
Sub stream: D1@30fps(Max)
Hard Disk
SATA 1 SATA interface
Capacity Up to 6TB for each HDD
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 2 x USB2.0
Serial Interface 1 x RS485
General
Power Supply 12V DC
Power Consumption: ≤ 8 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 260mm ×240mm× 46mm (10.2" × 9.4"×1.8")
Weight ( without HDD ) ≤1.1 Kg ( 4.19lb )
