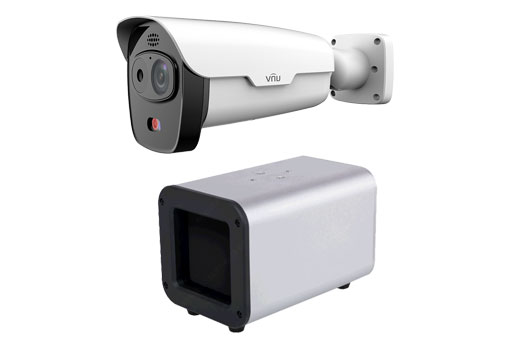

Heat-Tracker Series รุ่น 4MP Dual-spectrum Thermal Bullet Network Camera

Heat-Tracker Series รุ่น 4MP Dual-spectrum Thermal Bullet Network Camera
รหัสสินค้า TIC2221TER5F34F4ACVD
หมวดหมู่ Heat Tracker Series
ราคา 0.00 บาท
สถานะสินค้า พร้อมส่ง
สภาพ สินค้าใหม่
ลงสินค้า 8 ก.พ. 2565
อัพเดทล่าสุด 8 ก.พ. 2565
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
  TIC2221TER5-F3-4F4AC-VD
Optical Module
Sensor 1/1.8", 4.0 megapixel, progressive scan, CMOS
Lens 4mm@F1.6
Iris Fixed aperture
Angle of View (H) 89.8°
Angle of View (V) 49.1°
Frame Rate 4 MP(2688*1520), max 30fps
Shutter Auto/Manual, 1 ~ 1/100000s
Min. Illumination Colour: 0.001 lux (F1.6, AGC ON)
0 lux with IR
WDR 120 dB
Day/Night IR-cut filter with auto switch (ICR)
IR Range Up to 50 m (164 ft) IR range
Wavelength 850 nm
IR On/Off Control Auto/Manual
BLC Support
Thermal Module
Sensor type Vanadium Oxide Uncooled Focal Plane Arrays
Original resolution 256*192
Angle of View (H) 51.8°
Angle of View (V) 40.5°
Video resolution 720P(1280*720), max 25fps
Response waveband 8~14 μm
Pixel size 12 μm
IFOV 3.75 mrad
NETD <50 mk @F1.0 @25°C
Lens(focal length) 3.2 mm@F1.1
Palette Up to 20 palettes of optional colors, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce
Temperature screening accuracy
Temperature range 30°C~45°C
Temperature accuracy ±0.3°C (with black-body)
±0.5°C (without black-body)
Temperature screening working environment 10°C~50°C
Smart
Human body temperature screening Support human body temperature screening when OSD displays the temperature on the body surface or inside
Support human body temperature screening alarm, and set alarm threshold temperature
Audio and light alarm Support audio and light warning function, with built-in red and blue warning lights
Attribute collection Support mask and human body temperature attribute collection
Alarm Support alarm when not wearing mask or abnormal temperature is detected
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Video
Compression Ultra265, H.265, H.264, MJPEG
Video Stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas per scene
Audio
Audio Compression G.711U,G.711A
Two-way audio Support, Built-in mic and speaker
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T)
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Audio I/O 1/1
Alarm I/O 2/2
Serial Port 1 RS485
Network 1 x RJ45 10M/100M Base-TX Ethernet
General

Power

DC12V(±25%), PoE(IEEE802.3af)
Power consumption: Max 12W
Support reverse polarity protection, Overvoltage and overcurrent protection , Input short circuit protection
Dimensions (L x W x H) 306.0mm*116.0mm*104.0mm(12.0’’x4.6’’x4.1’’)
Net Weight 1.51 kg(3.33lb)
Installation method Tripod
