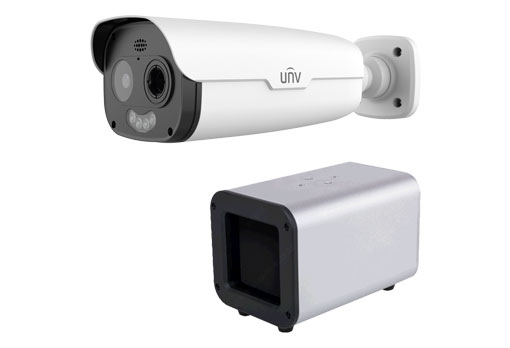

Heat-Tracker Series รุ่น 4MP Dual-spectrum Thermal Bullet Network Camera

Heat-Tracker Series รุ่น 4MP Dual-spectrum Thermal Bullet Network Camera
รหัสสินค้า TIC2531TER5F104F6APCA
หมวดหมู่ Heat Tracker Series
ราคา 0.00 บาท
สถานะสินค้า พร้อมส่ง
สภาพ สินค้าใหม่
ลงสินค้า 8 ก.พ. 2565
อัพเดทล่าสุด 8 ก.พ. 2565
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
  • Optics

    * Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to more various scenes

    * Starlight illumination

    Smart

    * Support human body temperature screening which should be used with black-body

    * Support face detection

    * Support mask and human body temperature attribute collection

    * Support alarm when no mask and abnormal temperature are detected

    * Support audio and light alarm

    Compression

    * Ultra 265, H.265, H.264, MJPEG

    * Triple streams

    * Max 2688*1520@60fps in the optical module

    * Max 720P@25fps in the thermal module

    Network

    * ONVIF Conformance

    Structure

    * DC12V or PoE power supply

    * Wide voltage range of ±25% in DC

    * Micro SD, up to 256 GB

    * Alarm 2 in and 2 out, Audio 1 in and 1 out

    * IP66


      TIC2531TER5-F10-4F6APCA
    Optical Module
    Sensor 1/1.8", 4.0 megapixel, progressive scan, CMOS
    Lens 6mm@F1.6,
    Iris Fixed Iris
    Angle of View (H) 56.1°
    Angle of View (V) 31.7°
    Frame Rate 4MP(2688*1520), Max 60fps
    Shutter Auto/Manual, 1 ~ 1/100000s
    Min. Illumination Colour:0.001lux (F1.6, AGC ON)
    0 lux with IR
    WDR 120dB
    Day/Night IR-cut filter with auto switch (ICR)
    IR Range Up to 50m (164 ft) IR range
    Wavelength 850nm
    IR On/Off Control Auto/Manual
    BLC Supported
    Thermal Module
    Sensor type Vanadium Oxide Uncooled Focal Plane Arrays
    Max. Resolution 384*288
    Angle of View (H) 39.0°
    Angle of View (V) 29.6°
    Frame Rate 720P(1280*720), Max 25fps
    Response waveband 8~14μm
    Pixel size 17μm
    IFOV 1.75mrad
    NETD ≤40mk @ f1.0 @23±3°C
    Lens(focal length) 10mm @F1.0
    Palette Up to 20 palettes of optional color, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce
    Temperature screening accuracy
    Temperature range 30°C~42°C
    Temperature accuracy ±0.3℃(with black-body), without black-body is not supported
    Temperature screening working environment 16°C~32°C
    Smart
    Human body Temperature screening Support human body temperature screening when OSD displays the temperature on the body surface or inside
    Support human body temperature screening alarm, and set alarm threshold temperature
    Audio and light alarm Support audio and light warning function, with red and blue warning lights built in
    Face detection Optical camera support face detection
    Attribute collection Support mask and human body temperature attribute collection
    Alarm Support alarm when no mask and abnormal temperature are detected
    General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
    Video
    Compression Ultra265, H.265, H.264, MJPEG
    Video Stream Triple streams
    OSD Up to 8 OSDs
    Privacy Mask Up to 8 areas(8 blacks)
    Audio
    Audio Compression G.711U,G.711A
    Two-way audio Supported, Built in mic and speaker
    Sampling Rate 8KHZ
    Storage
    Edge Storage Micro SD, up to 256 GB
    Network Storage ANR
    Network
    Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS,
    Compatible Integration ONVIF (Profile S, Profile G)
    Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
    Interface
    Audio I/O Audio cable
    1 Input: impedance 35kΩ; amplitude 2V [p-p]
    1 output: impedance 600Ω; amplitude 2V [p-p]
    Alarm I/O 2/2
    Serial Port 1 RS485
    Network 1 x RJ45 10M/100M Base-TX Ethernet
    General

    Power

    DC12V(±25%), PoE+(IEEE802.3at)
    Power consumption: Max 14W
    Support reverse polarity protection, Overvoltage and overcurrent protection , Input short circuit protection
    Dimensions (Ø x H) Φ395.2mmx137.0mmx112.0mm(Φ15.6’’x5.4’’x4.4’’)
    Net Weight 3.5kg(7.7lb)
    Installation method Tripod
    Ingress Protection IP66
