รหัสสินค้า | SKU-16067 |
หมวดหมู่ | Line Interactive UPS |
ราคา | 2,090.00 บาท |
น้ำหนัก | 4,000 กรัม |
สถานะสินค้า | พร้อมส่ง |
สภาพ | สินค้าใหม่ |
ลงสินค้า | 30 ก.ค. 2565 |
อัพเดทล่าสุด | 5 ส.ค. 2565 |
คงเหลือ | ไม่จำกัด |
จำนวน | ชิ้น |
คุณสมบัติ

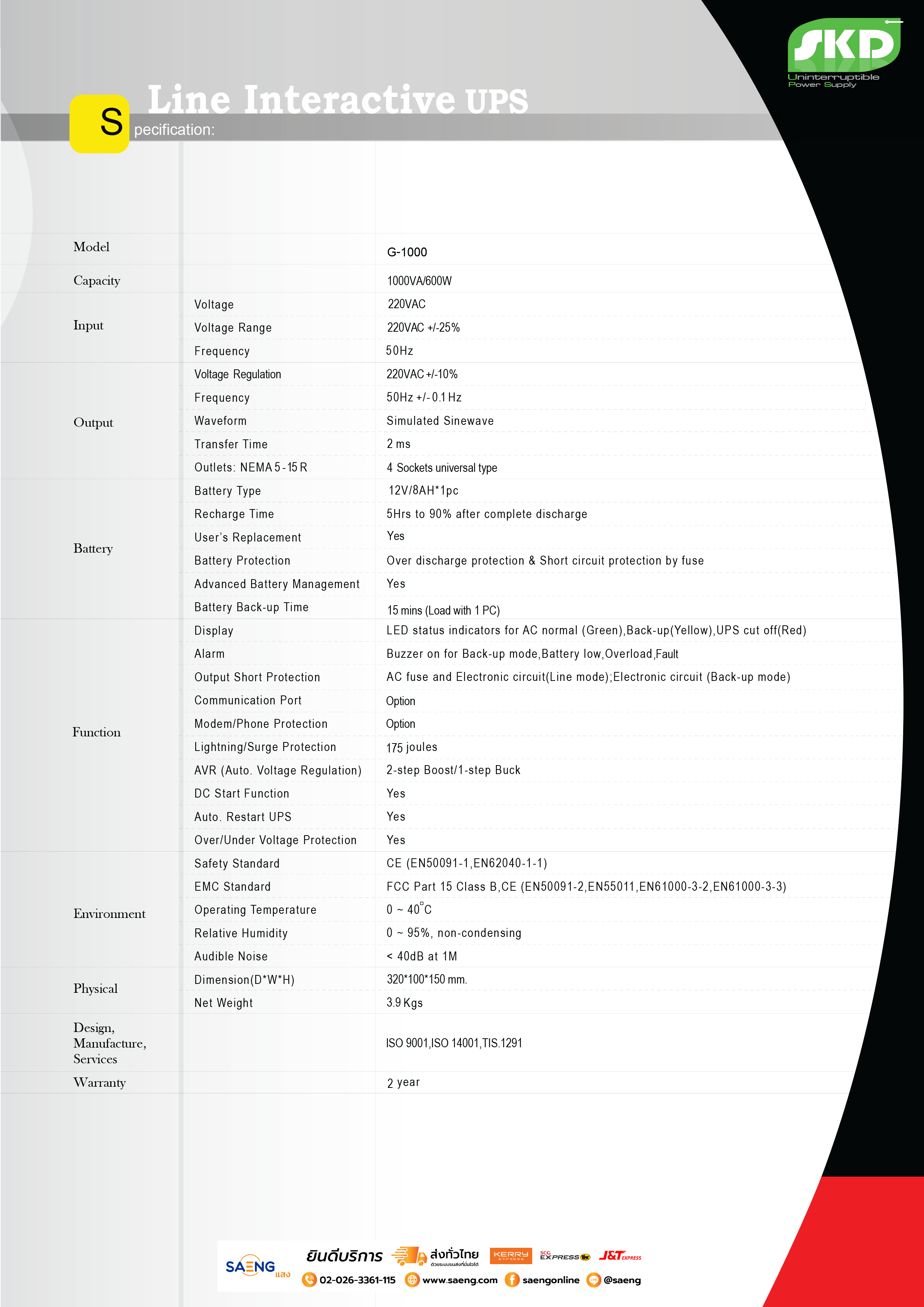

Specification | |

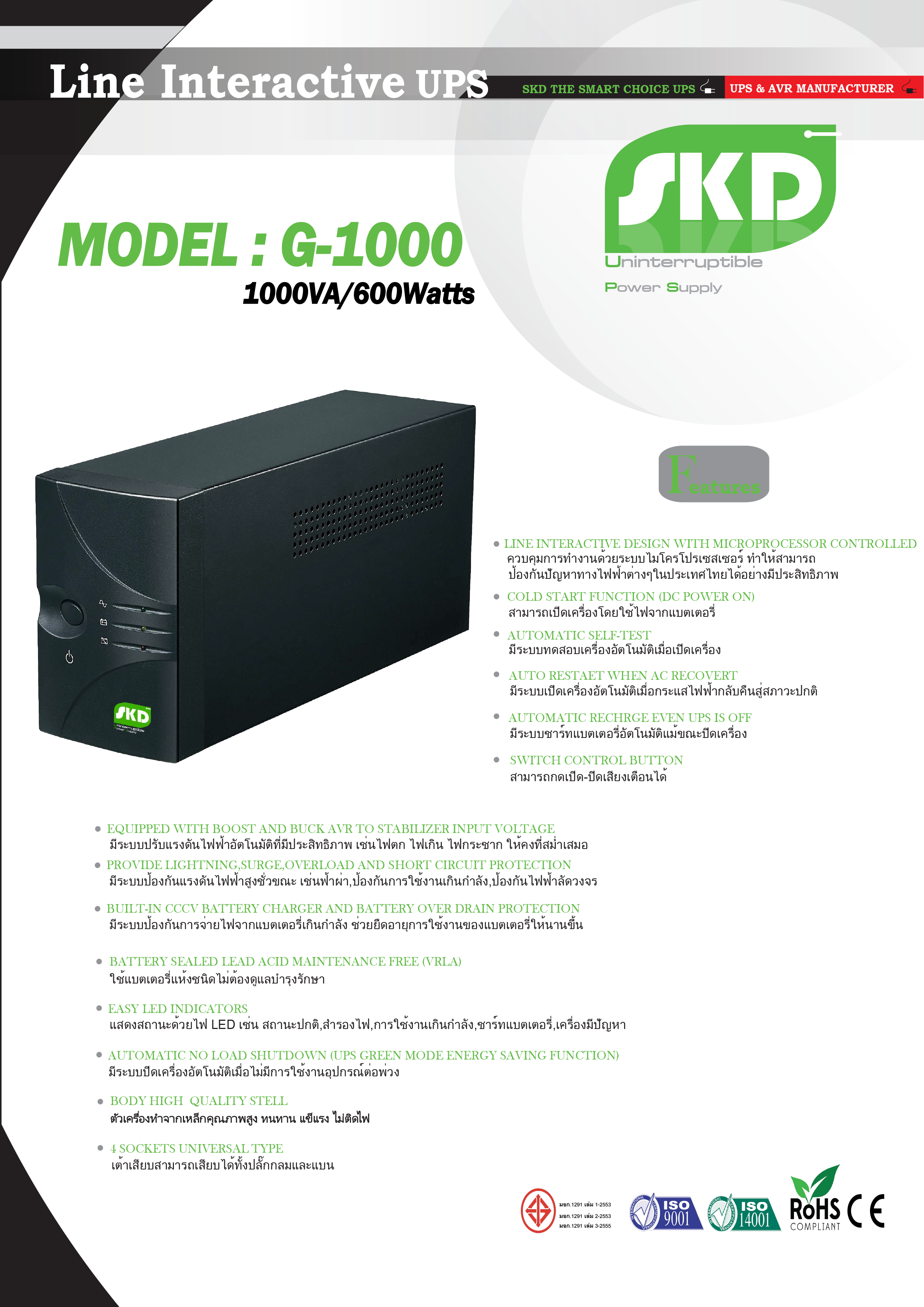

Model | G-1000 |
Capacity | 1000VA/600W |
Input | |
Voltage | 220VAC |
Voltage Range | 220VA C (+/-25 %) |
Frequency | 50 Hz |
Output | |
Voltage Regulation (AVR. Mode) | 220VAC +/- 10% |
Frequency | 50Hz +/- 1 Hz |
Waveform | Simulated Sinewave |
Transfer Time | 2 ms |
Outlets: NEMA 5 -15 R | 4 Sockets universal type |
Battery | |
Battery Type | 12V/ AH*1pc |
Recharge Time | 5Hrs to 90% after complete discharge |
User’s Replacement | Yes |
Battery Protection | Over discharge protection & Short circuit protection by fuse |
Advanced Battery Management | Yes |
Battery Back-up Time | 15 mins (Load with 1 PC) |
Function | |
Display | LED status indicators for AC normal (Green),Back-up(Yellow),UPS cut off(Red) |
Alarm | Buzzer on for Back-up mode,Battery low,Overload, Fault |
Output Short Protection | AC fuse and Electronic circuit(Line mode);Electronic circuit (Back-up mode) |
Communication Port | Option |
Modem/Phone Protection | Option |
Lightning/Surge Protection | 175 Joules |
AVR (Auto. Voltage Regulation) | 2-step Boost/1-step Buck |
DC Start Function | Yes |
Auto. Restart UPS | Yes |
Over/Under Voltage Protection | Yes |
Environment | |
Safety Standard | CE (EN50091-1,EN62040-1-1) |
EMC Standard | FCC Part 15 Class B,CE (EN50091-2,EN55011,EN61000-3-2,EN61000-3-3) |
Operating Temperature | 0 ~ 40 ๐C |
Relative Humidity | 0 ~ 95%, non-condensing |
Audible Noise | < 40dB at 1M |
Physical | |
Dimension(D*W*H) | 320*100*150 mm. |
Net Weight | 3.9 Kgs |
Design, Manufacture, Services |
ISO 9001,ISO 14001,TIS.1291 |
Warranty | 2 Year |
