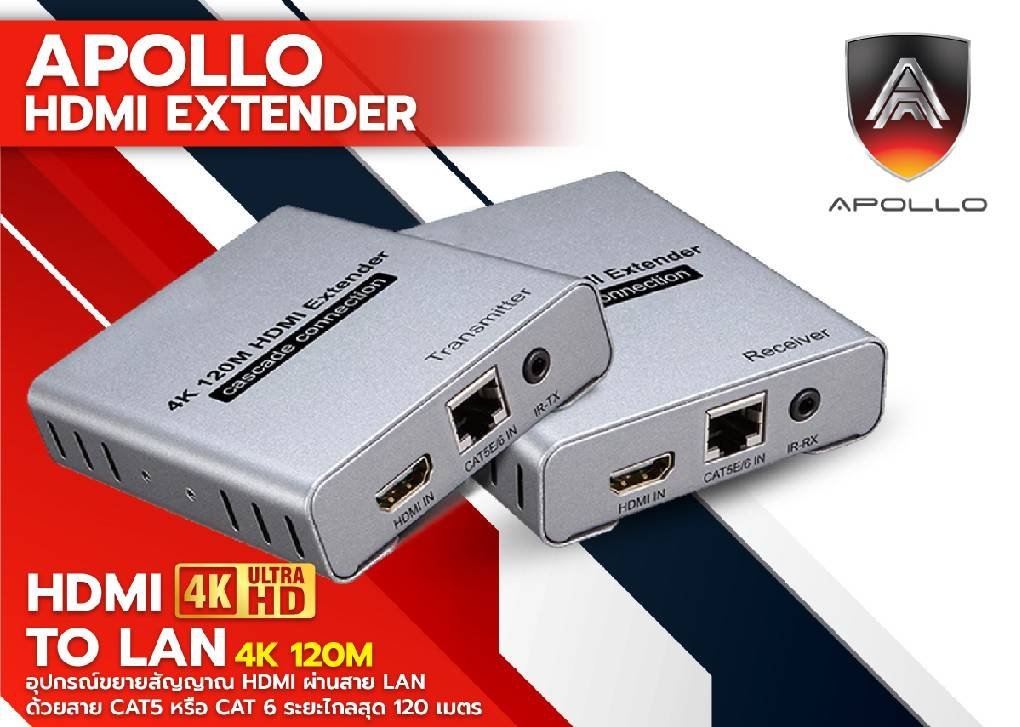

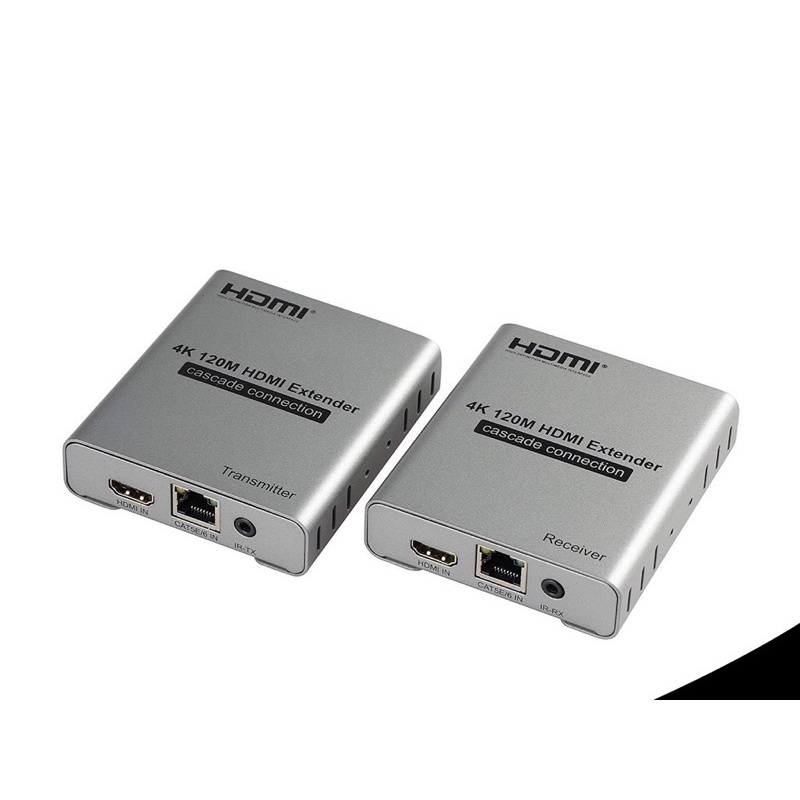

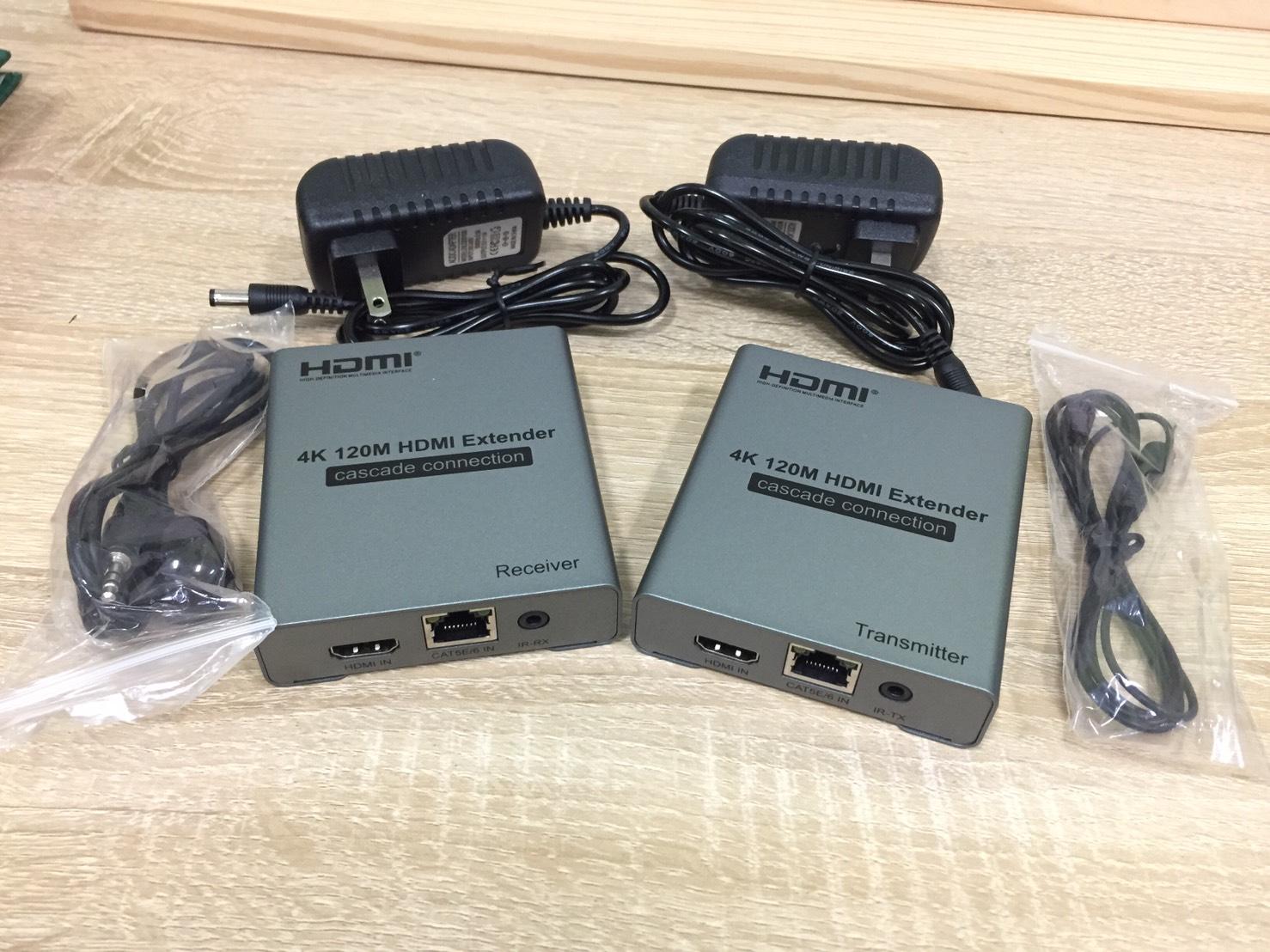

HDMI EXTENDER 120M. HDMI 4K ใช้สายแลนLan Cat5e-6

Length of CAT-5E/CAT-6 cable between Rx and TX:up to 120 meters HDMI input:4K/1080p/720p/576p/576i/480p/480i Support audio format:DTS/Dolby/LPCM HDMI output:4K/1080p/720p/576p/576i/480p/480i Max bandwidth:600MHz Max baud rate:6Gbps x3 Input video signal:0.5~1.5Volts p-p Output DDC signal:5Volts p-p (TTL) Input HDMI cable distance:s10m AWG26 HDMI standard cable Output HDMI cable distance:s10m AWG26 HDMI standard cable TX Max working current:350mA RX Max working current:200mA Power adapter format:Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A Operating Temperature range : (-15 to +55*C) Operating Humidity range:5% to 90%RH (No Condensation) Dimension (L x W x H):94x84x24(mm)Length of CAT-5E/CAT-6 cable between Rx and TX:up to 120 meters HDMI input:4K/1080p/720p/576p/576i/480p/480i Support audio format:DTS/Dolby/LPCM HDMI output:4K/1080p/720p/576p/576i/480p/480i Max bandwidth:600MHz Max baud rate:6Gbps x3 Input video signal:0.5~1.5Volts p-p Output DDC signal:5Volts p-p (TTL) Input HDMI cable distance:s10m AWG26 HDMI standard cable Output HDMI cable distance:s10m AWG26 HDMI standard cable TX Max working current:350mA RX Max working current:200mA Power adapter format:Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A Operating Temperature range:(-15 to +55*C) Operating Humidity range :5% to 90%RH (No Condensation) Dimension (L x W x H):94x84x24(mm) Remarks: 1)the item listed above is for Sender or receiver only.the sender or receiver can not work independently. 2)This HDMI extender's sender&receiver is interchangeable.namely,sender can work as receiver or receiver can work as sender. 3)we will send the sender or receiver randomly. 4)Max. lengths:4kX2K/30HZ up to 60M,1080P/60HZ up to 120M(based on 26AWG cat6e cable)
