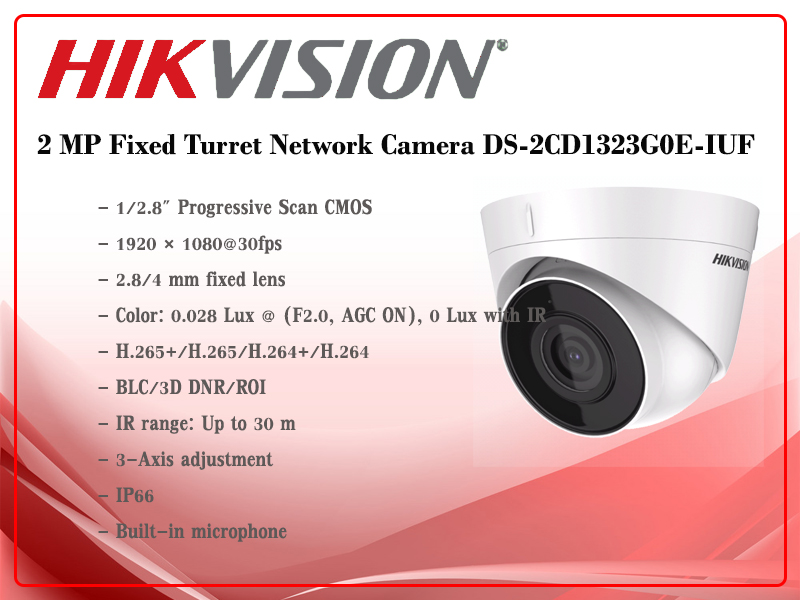

2 MP Fixed Turret Network Camera Hikvision DS-2CD1323G0-IUF

• 1/2.8" Progressive Scan CMOS
• 1920 × 1080@30fps
• 2.8/4 mm fixed lens
• Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
• H.265+/H.265/H.264+/H.264
• BLC/3D DNR/ROI
• IR range: Up to 30 m
• 3-Axis adjustment
• IP66
• Built-in microphone

Specifications

Camera:

Image Sensor 1/2.8" Progressive Scan CMOS

Min. Illumination Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Speed 1/3 s to 1/100,000 s

Slow Shutter Yes

Day & Night IR Cut Filter

WDR DWDR

Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens:

Lens Type Fixed lens, 2.8/4 mm

Aperture F2.0

FOV

2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°

4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°

Lens Mount M12

Illuminator:

IR Range Up to 30 m

Wavelength 850 nm

Video:

Max. Resolution 1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

H.264 Type Baseline Profile/Main Profile/High Profile

H.265 Type Main Profile

Video Bit Rate 32 Kbps to 8 Mbps

Audio(-U):

Audio Compression G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Smart Feature-Set:

Basic Event Motion detection, video tampering alarm, exception (illegal login)

Linkage Method Upload to FTP, notify surveillance center, send email, trigger capture

Region of Interest 1 fixed region for main stream and sub-stream

Image:

Image Enhancement BLC, 3D DNR

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance

adjustable by client software or web browser

Day/Night Switch Day/Night/Auto/Schedule

Network:

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP

API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Simultaneous Live View Up to 6 channels

User/Host Up to 32 users, 3 levels: administrator, operator and user

Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

Interface:

Communication Interface 1 RJ45 self-adaptive Ethernet port

Audio 1 audio input (built-in microphone), mono sound.

General:

Firmware Version 5.5.83

General Function

One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP

address filter

Reset Reset via web browser and client software

Startup and Operating

Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 0)

Power Consumption and Current 12 VDC, 0.4 A, max. 5 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 6.5 W

Material Camera body: metal, bottom base : plastic

Dimensions

Camera: 94.4 × Φ110 mm (3.7" × Φ4.3")

With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")

Weight

Camera: Approx. 354 g (0.8 lb.)

With package: Approx. 681 g (1.5 lb.).
