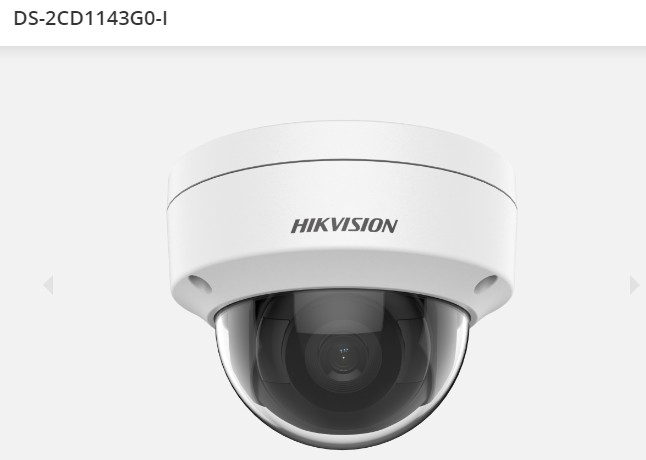

4MP Fixed Dome Network Camera Hikvision รุ่น DS-2CD1143G0-I

4MP Fixed Dome Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Water and dust resistant (IP67) and vandal resistant (IK10)
• EXIR 2.0: advanced infrared technology with long IR range

• กล้อง
• Image Sensor1/3" progressive scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100, 000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°

• Lens
• Focal Length & FOV

  2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°

  4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°

• Lens MountM12
• FocusFixed
• ApertureF2.0
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Iris TypeFixed

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• IR Wavelength850 nm
• Smart Supplement LightYes

• Video
• Main Stream

  50 Hz: 20 fps (2560 × 1440)

  25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (2560 × 1440)

  30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)1 fixed region for main stream

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Settings

  Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client

  software or web browser

• Day/Night SwitchAuto, Schedule, Day, Night
• Wide Dynamic Range (WDR)120 dB
• Image EnhancementBLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• Event
• Basic EventMotion detection, video tampering alarm, exception
• LinkageUpload to FTP, notify surveillance center, send email

• General
• Power

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• DimensionØ111 mm × 82.4 mm (Ø 4.4" × 3.2")
• Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
• WeightApprox. 360 g (0.8 lb.)
• With Package WeightApprox. 560 g (1.2 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

• Approval
• EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
