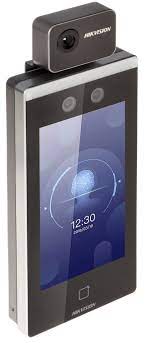

Pro Face Access Hikvision DS-K1TA70MI-T

Pro Face Access Terminal

• Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
• Recognition distance: 0.3 to 1.8 m
• Face mask detection
• Displays temperature measurement results on the authentication page
• 7-inch LCD touch screen,2 Mega pixel wide-angle lens Built-in Mifare card reading module
• Face recognition duration ＜ 0.2 s/User
• Face recognition accuracy rate ≥ 99%
• 6000 face capacity, 6000 card capacity, and 100,000 event capacity

• Temperature Measurement
• Temperature Range30 °C to 45 °C (86 °F to 113 °F)
• SensorVanadium Oxide uncooled sensor
• Resolution120 × 160
• Frame Rate25 fps
• Measurement Accuracy0.1 °C
• Measurement Deviation± 0.5 °C
• Measuring Distance0.3 to 1.8 m

• Display
• Size7-inch
• TypeTouch screen

• Video
• FOVHFOV= 46°; VFOV= 87°
• Pixel2 MP
• LensDual-lens

• Network
• Wired NetworkSupport, 10/100/1000 Mbps self-adaptive

• Interface
• Network Interface1
• RS-4851
• Wiegand1
• Lock Output1
• Exit Button1
• Door Contact Input1
• IO Input2
• IO Output1
• TAMPER1

• Capacity
• Card Capacity6000
• Face Capacity6000
• Event Capacity100,000

• Authentication
• Card TypeM1 card
• Card Reading Distance0 to 5 cm
• Card Reading Duration＜ 1 s
• Face Recognition Duration＜ 0.2 s per person
• Face Recognition Distance0.3 to 1.8 m

• Function
• Face Anti-SpoofingSupport
• Live ViewSupport
• Audio PromptSupport

• General
• Power Supply12 VDC/2 A
• Working Temperature

  0 °C to 50 °C (32 °F to 122 °F)

  For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F)

• Working Humidity10 to 90% (No condensing)
• Application EnvironmentIndoor and windless environment use only
• Weight

  Gross Weight: 1.89 kg (4.17 lb)

  Net Weight: 1.04 kg (2.29 lb)
