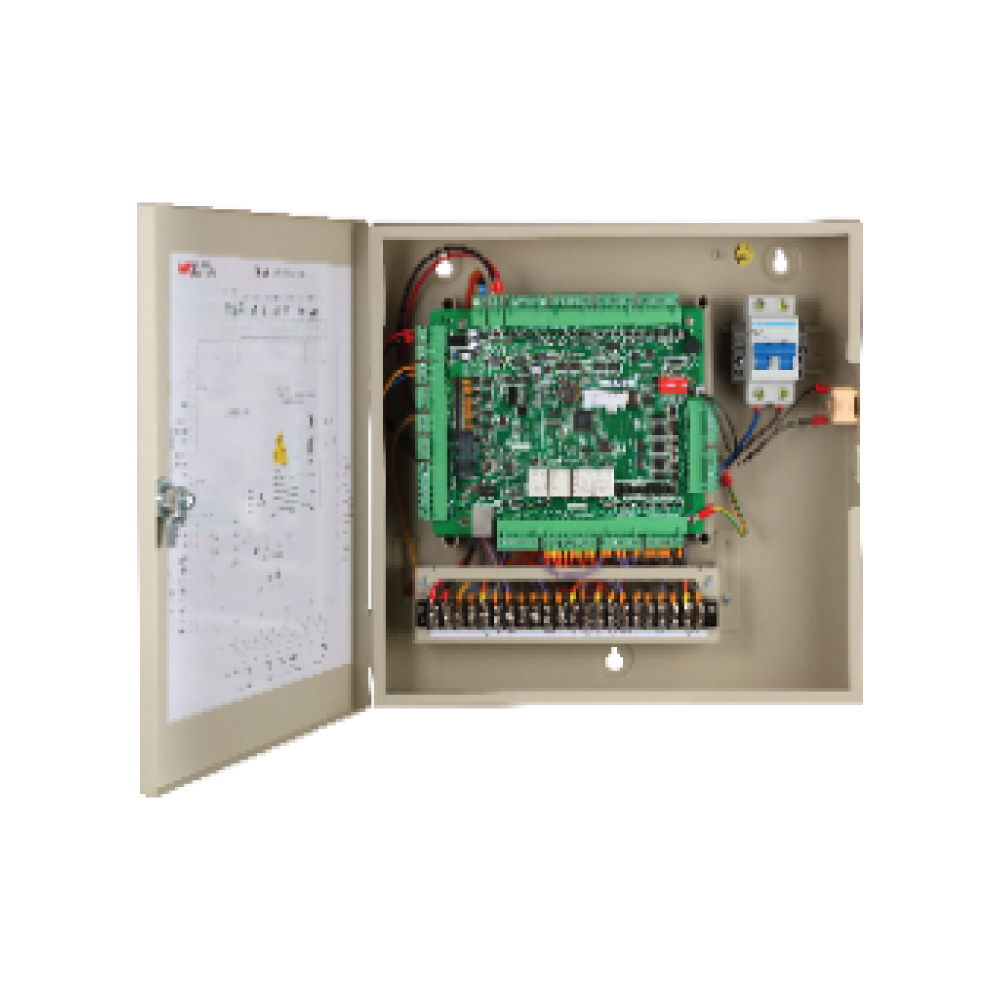

Four-door Access Controller, Storage with 100,000 cards and 300,000 access control events. Uplink Communication: TCP/IP and RS-485; Accessible Card Reader: 4 Wiegand readers or 8 RS485 readers; Input interface: 4 alarm input, Door Sensor×4, Door Switch×4, Case Input×8, Fire Alarm Linkage×1, Tamper-proof×1; Output interface: Door Switch Relay×4, Alarm Relay×4.
Interface
Network InterfaceTCP/IP
Lock Control
1
Exit Button
1
Door Contact Input
1
General
Power Supply100 ~ 240 VAC
Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
Power Consumption
With load: ≤ 50 w
Without load: ≤ 4 w
Working Humidity10% to 90% (no condensing)
Dimensions373 mm × 345 mm × 98 mm (14.7" × 13.6" × 3.6")
