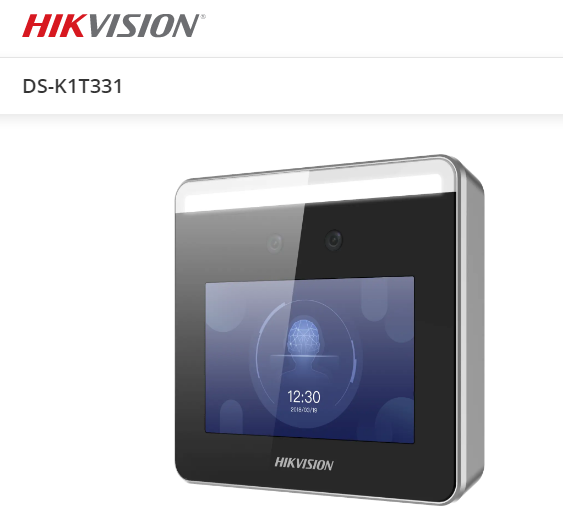

Hikvision Face Access Terminal DS-K1T331

Value Series Face Access Terminal

• Max.1000 faces capacity
• Supports TCP/IP communication
• Configuration via the web client
• Face Recognition Access Control Terminal, 3.97-inch LCD touch screen,2 Mega pixel wide-angle lens
• Supports ISUP5.0, ISAPI

• System Parameters
• Operation SystemLinux
• Camera2 MP dual-lens camera with wide dynamic range
• Capacity

  Card: 1500 (When connecting external card reader)

  Face: 1000

  Event: 150,000

• 1:N Face Recognition Duration＜ 0.2 s

• LCD Screen
• LCD Screen3.97-inch touch screen

• General
• Face Recognition Distance0.3 m to 1.5 m
• InterfaceUSB × 1, electric lock × 1, door contact × 1, tamper × 1, exit button × 1, RS-485 × 1
• Communication ModeTCP/IP: 10/100 Mbps, self-adaptive
• Power Supply12 V, 1.5 A, 18 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 to 90% (no condensing)
• Dimension120 mm × 110 mm × 23 mm (4.7" × 4.3" × 0.9")
• Application SituationIndoor use
• LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
• PlatformHik-ProConnect and HikCentral Professional
• Communication ProtocolHikCentral Pro OpenAPI and Hik-ProConnect OpenAPI
