| รหัสสินค้า | SKU-17518 |
| หมวดหมู่ | เครื่องวัดสัญญาณ |
| ราคา | 2,900.00 บาท |
| น้ำหนัก | 800 กรัม |
| สถานะสินค้า | พร้อมส่ง |
| สภาพ | สินค้าใหม่ |
| ลงสินค้า | 18 ม.ค. 2567 |
| อัพเดทล่าสุด | 7 ส.ค. 2567 |
| คงเหลือ | ไม่จำกัด |
| จำนวน | ชิ้น |

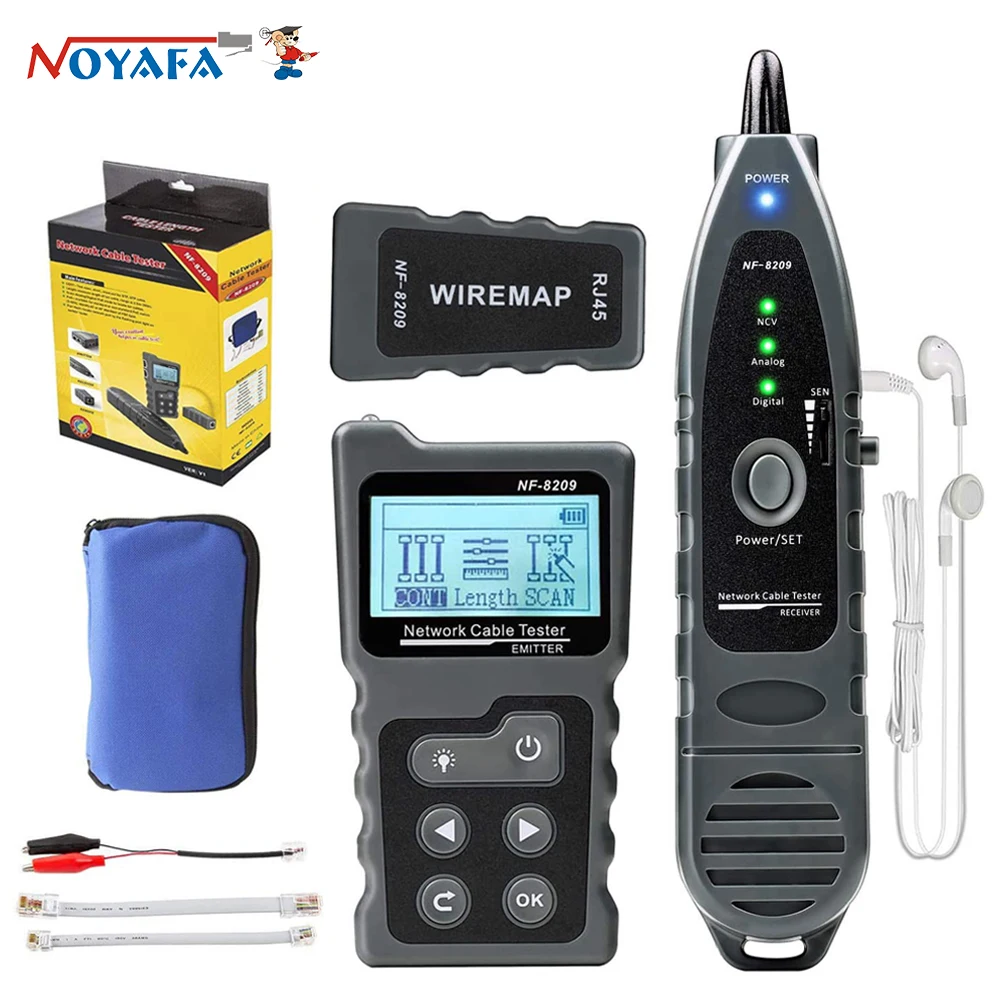

TESTER LAN NOYAFA รุ่น NF-8209
เครื่องทดสอบสายแลน TESTER LAN NOYAFA รุ่น NF-8209 จอ LCD สามารถวัดความยาวสายแลน ทดสอบความผิดพลาดของสายแลนและ POE ได้ ทดสอบได้ระยะไกลสูงสุด 600 เมตร
Product Operation
PRODUCT DESCRIPTION
Network Cable Tester NF-8209
Item Specifics:
OEM / ODM : Yes
Brand Name : Noyafa
Model Number : NF-8209
Place of Origin : Shenzhen.China
Main Function : Detecting PoE voltage, current, power, PoE standards Power supply modes, Verify RJ45 cables
Tracking Type : PoE, RJ45 Cable
Other Function : Lighting & NCV(non-contact voltage)
Warranty : 1 Year
TECHNICAL INDEX
| Transmitter | Wiremap | Cable type | CAT5、CAT6 (STP & UTP) |
| Test with switch directly | Yes | ||
| Max range | 600m | ||
| Length | Cable type | CAT5、CAT6 (STP & UTP) | |
| Test range | 2~200m | ||
| Accuracy | ±1.6m | ||
| Breakage location | Yes | ||
| Scan | Cable type | CAT5、CAT6 (STP & UTP) | |
| Max. signal voltage | 8Vp-p | ||
| Frequency | 130KHz | ||
| AC filter | Yes | ||
| Max range | 600m | ||
| POE | Test range | DC 5~60V standard / non-standard PoE switch | |
| Voltage display | Yes | ||
| PoE type | IEEE 802.3af/at | ||
| LCD display | 128*64 Dot-matrix with backlight | ||
| Power supply | AAA*3 (Not included) | ||
| Low battary warning | 2.7V | ||
| Auto-off time | 15min、30min、60min、OFF | ||
| Voltage protection | DC48V 5mA | ||
| Max working current | <150mA | ||
| Receiver | Sentivity adjustable | Yes | |
| AC Voltage detecting | Yes | ||
| Lamp | Yes | ||
| Battary type | 9V*1 (Not included) | ||
| Low battary warning | 6± 0.5V | ||
| Max working current | <100mA | ||
| Remote | Wiremap Port | RJ45 | |
| Voltage protection | DC48V 5mA | ||
