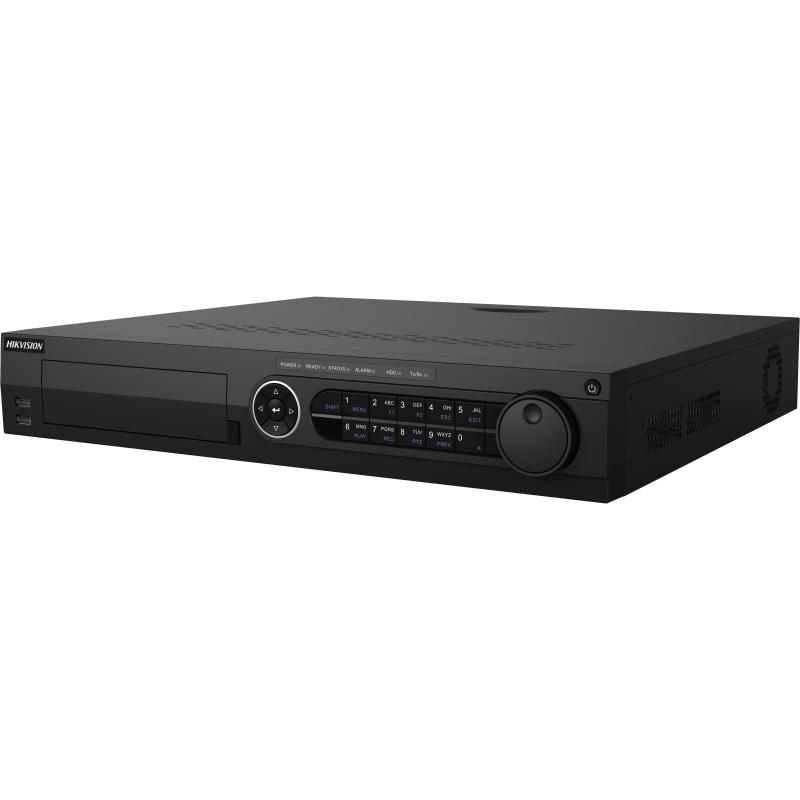

32-ch 1080p 1.5U H.265 AcuSense DVR Hikvision IDS-7332HQHI-M4/S

32-ch 1080p 1.5U H.265 AcuSense DVR

• Deep learning-based perimeter protection
• Deep learning-based motion detection 2.0 for all analog channels
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
• Up to 48-ch IP camera inputs and 4 SATA interfaces
• Up to 1080p@15 fps encoding capability
• HDTVI/AHD/CVI/CVBS/IP video inputs
• POS triggered recording and POS information overlay

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Perimeter Protection
• Human/Vehicle AnalysisUp to 8-ch, for channel 1/2/3/4/17/18/19/20 only

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  4 MP Lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Main stream:

  When 1080p Lite mode is not enabled:

  For 4 MP stream access:

  4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  For 1080p stream access:

  1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25fps (P)/30 fps (N)

  For 720p stream access:

  720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  When 1080p Lite mode is enabled:

  4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 6 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

• Video And Audio
• IP Video Input

  16-ch (up to 48-ch)

  Up to 6 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  32-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• Incoming Bandwidth200 Mbps
• Outgoing Bandwidth160 Mbps
• HDTVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
• AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• HDMI 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
• Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
• Synchronous Playback16-ch

• Network
• Remote Connection128
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
• Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface

• Auxiliary Interface
• Serial InterfaceRS-232, RS-485 (full-duplex), keyboard
• SATA4 SATA interfaces
• ESATASupport
• CapacityUp to 12 TB capacity for each disk
• Alarm In/Out16/4
• USB Interface

  Front panel: 2 × USB 2.0

  Rear panel: 1 × USB 3.0



• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 40 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)445 × 400 × 71 mm (17.5 × 15.7 × 2.8 inch)
• Weight≤ 7 kg (without HDD, 15.4 lb.)
