รหัสสินค้า | SKU-17673 |
หมวดหมู่ | โปรโมชั่นชุดกล้อง ประจำเดือน |
ราคา | 40,000.00 บาท |
น้ำหนัก | 4,500 กรัม |
สถานะสินค้า | พร้อมส่ง |
สภาพ | สินค้าใหม่ |
ลงสินค้า | 27 ก.พ. 2567 |
อัพเดทล่าสุด | 6 มี.ค. 2567 |
คงเหลือ | ไม่จำกัด |
จำนวน | ชิ้น |

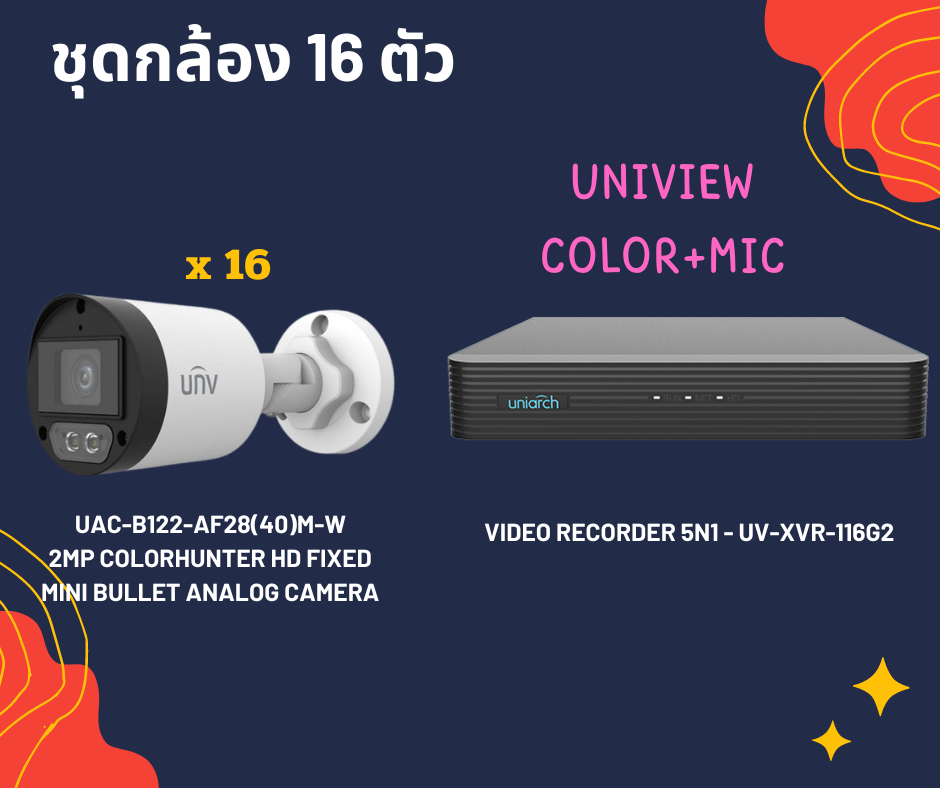

อุปกรณ์ในชุดประกอบด้วย

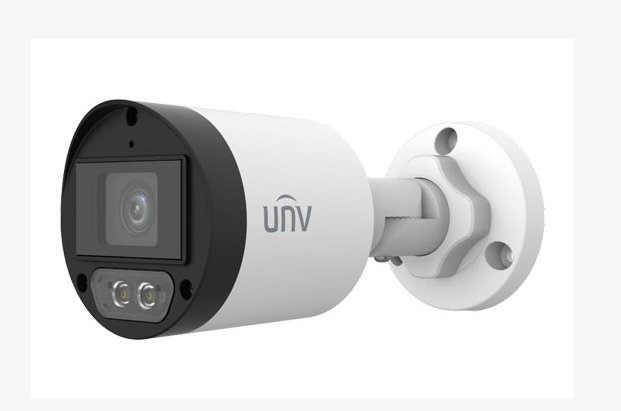

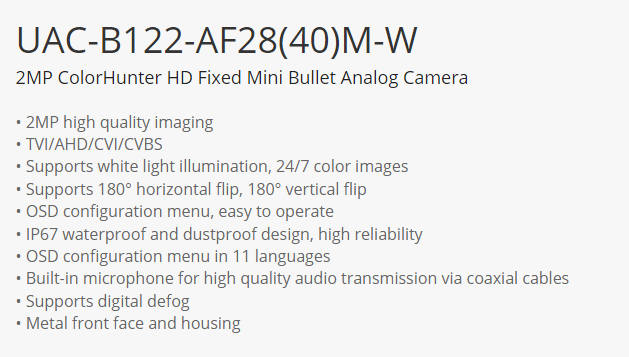

1. กล้อง 2 ล้าน Uniview รุ่น UAC-B122-AF28(40)M-W สี+ไมค์ จำนวน 16 ตัว
2. เครื่องบันทึก 16 ch Uniarch แบรนด์ลูก ของ Uniview XVR-116G2 จำนวน 1 เครื่อง
3. harddisk 2 TB จำนวน 1 ลูก
4. ฟรีสายสัญญาณ 400 เมตร
5. ฟรีร้อยท่อ 30 เมตร
6. พร้อมติดตั้งและเซ็ตระบบ
หากสายเกิน คิดเมตรละ 25 บาท / หากต้องการร้อยท่อเพิ่มเมตรละ 45 บาท
รับประกันสินค้า 3 ปี / รับประกันงานติดตั้ง 1 ปี
SKU | UV-XVR-116G2 |
Brand | Uniarch |
Video format | HDTVI / HDCVI / AHD / CVBS / IP |
Video inputs | 16CH BNC |
Hybrid configuration | Up to 16 IP Channels (8Mpx) replacing all the BNC channels |
Video outputs | 1 HDMI Full HD, 1 VGA |
Audio inputs | 1 Channel RCA |
Audio outputs | 1 Channel RCA |
Bidirectional audio | Reusing the audio input/output |
Display resolution | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
Maximum IP recording resolution | 8 Mpx |
Analog cameras supported | TVI / AHD: 5MP@12FPS; 4MP@15FPS; 1080P@30FPS CVI: 1080P@30FPS; 720@30FPS *For the correct live display, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the specifications indicated, but in no case higher than the specifications indicated. |
Main Stream recording encoding | TVI/CVI/AHD 5MPLite@6FPS; 4MPLite@8fps; 1080PLite@15FPS; 720P@15FPS |
Extra Stream recording encoding | D1@6FPS; D1@8FPS; D1@10FPS |
Recording method | Manual, programmed, motion detection |
Internal memory | 1 HDD SATA 3.5" of up to 6TB (not included) |
External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485 |
Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
Power | DC 12V / 10W |
Dimensions / Weight | 39 (H) x 260 (W) x 243 (Fo) mm / 1.1 kg |
