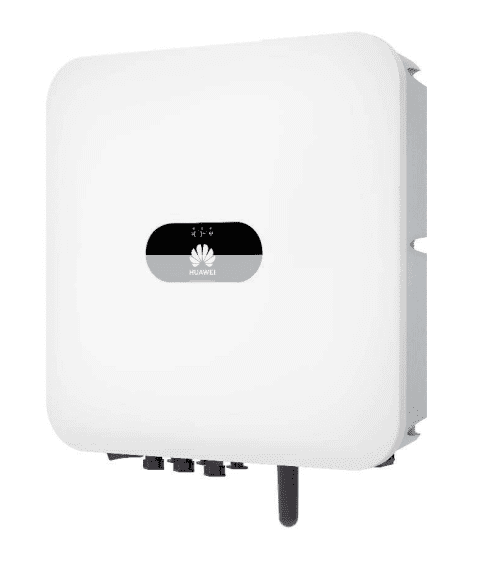

Huawei inverter Huawei SUN2000-5KTL-L1 (10Y) 5 KW / 1 PH / HYBIRD / Built-in / Wifi

Huawei Inverter SUN2000-5KTL-L1 (10 Years Warranty)
หัวเว่ย ออนกริด อินเวอร์เตอร์ 5KW 1เฟส รุ่น SUN2000-10KTL-M1 1 เฟส (ประกันศูนย์ไทย 10 ปี)

ใช้งานคู่กับ Huawei Power Sensor DDSU666-H เพื่อทำระบบกันไฟย้อน (Zero export)
สามารถทำ rapid shut down ได้โดยติดตั้ง optimizer (Huawei SUN2000-450W-P) ใต้แผงโซลาร์เซลล์ทุกแผง

Product Specification
Model : SUN2000-5KTL-L1
Number of MPP trackers : 2
Recommended max. PV power : 7,500 Wp
Grid connection : Single phase (1P)
IP65 for outdoor installation
Built-in WLAN
รองรับการต่อ Battery
ผ่านการรับรอง : การไฟฟ้านครหลวง (MEA) และ การไฟฟ้าส่วนภูมิภาค (PEA)
ประกันศูนย์ไทย 10 ปี

Efficiency
Max. efficiency 98.40%
European weighted efficiency 97.80%

Input (PV)
Recommended max. PV power 2 7,500 Wp
Max. input voltage 600 V 3
Start-up voltage 100 V
MPPT operating voltage range 90 V – 560 V 3
Rated input voltage 360 V
Max. input current per MPPT 12.5 A
Max. short-circuit current 18 A
Number of MPP trackers 2
Max. number of inputs 2

Input DC (Battery)
Compatible Battery LG Chem RESU 7H_R / 10H_R
Operating voltage range 350 ~ 450 Vdc
Max operating current 10 A @7H_R /15A @10H_R
Max charge power 3,500 W @7H_R / 5,000 W @10H_R
Max discharge Power @7H_R 3,500 W
Max discharge Power @10H_R 5,000 W
Compatible Battery HUAWEI Smart ESS Battery 5kWh – 30kWh 1
Operating voltage range 350 ~ 560 Vdc
Max operating current 15 A
Max charge Power 5,000 W 4
Max discharge Power 5,000 W

Output
Grid connection Single phase
Rated output power 5,000 W 5
Max. apparent power 5,500 VA 7
Rated output voltage 220 Vac / 230 Vac / 240 Vac
Rated AC grid frequency 50 Hz / 60 Hz
Max. output current 25 A 8
Adjustable power factor 0.8 leading … 0.8 lagging
Max. total harmonic distortion ≤ 3%
Backup power output Yes (via Backup Box-B0 1)

Protection & Feature
Anti-Islanding protection Yes
DC reverse polarity protection Yes
Insulation monitoring Yes
DC surge protection Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
AC surge protection Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
Residual current monitoring Yes
AC overcurrent protection Yes
AC short-circuit protection Yes
AC overvoltage protection Yes
Over-heat protection Yes
Arc fault protection Yes
Battery reverse charging from grid Yes

General Data
Operating temperature range -25 ~+60C (Derating above 45C @Rated output power)
Relative operating humidity 0 %RH ~ 100 %RH
Operating altitude 0 ~ 4,000 m (Derating above 2,000 m)
Cooling Natural convection
Display LED indicators; integrated WLAN + FusionSolar APP
Communication “RS485, WLAN via inverter built-in WLAN module
Ethernet via Smart Dongle-WLAN-FE (Optional); 4G / 3G / 2G via Smart Dongle-
4G (Optional)”
Weight (incl. mounting bracket) 12.0 kg (26.5 lb)
Dimension (incl. mounting bracket) 365mm * 365mm * 156 mm (14.4 x 14.4 x 6.1 inch)
Degree of protection IP65

Optimizer Compatibility
DC MBUS compatible optimizer SUN2000-450W-P Standard Compliance (more available upon request)
Safety EN/IEC 62109-1, EN/IEC 62109-2
Grid connection standards G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727, IEC62116, PEA, MEA
