รหัสสินค้า | SKU-17797 |
หมวดหมู่ | อุปกรณ์เสริมกล้องวงจรปิด |
ราคา | 3,104.00 บาท |
น้ำหนัก | 800 กรัม |
สถานะสินค้า | พร้อมส่ง |
สภาพ | สินค้าใหม่ |
ลงสินค้า | 4 เม.ย. 2567 |
อัพเดทล่าสุด | 19 มี.ค. 2568 |
คงเหลือ | ไม่จำกัด |
จำนวน | ชิ้น |
Product description
Specification

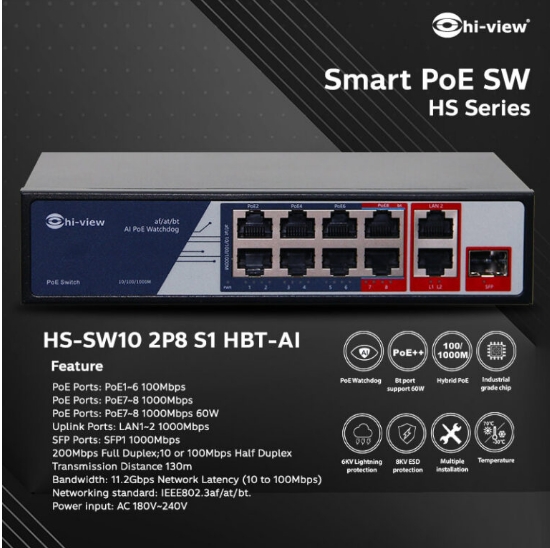

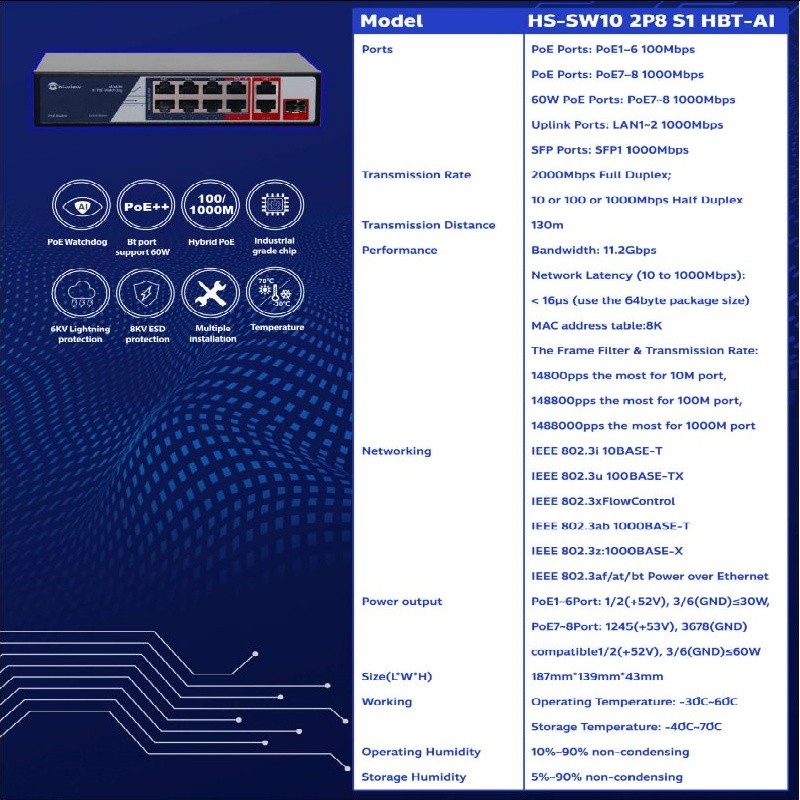

Model | HH-SW10 2P8 S1 |
Product | 8+2+1 Port 250m POE Switch (Built-in) |
POE Port | 1 to 8 support IEEE802.3AF/AT Standard |
Output Power | 15.4W/30W |
IEEE802.3af/at | |
Power Pin | Both 1/2+, 3/6- and 4/5+7/8- |
Whole Power | ≤S120W (52V 2.3A) |
POE Protocol | IEEE 802.3at/IEEE 802.3at |
POE Type | End-span |
Power Distance | ≤S250m |
Network Standard | IEEE 802.3 |
IEEE802.3u | |
802.3x | |
802.3at/at | |
Network Medium | 10/100BASE-TX: 5 class and above non shielded twisted pair |
Data Distance | <250m |
Swich Capability | 12Gbps |
Forwarding Mode | Store and forward |
Forwarding Rate | 100BASE-T: 148800pps / port |
1000BASE-T:1488000pps / port | |
MAC address | MAC Address table 2K |
Port Function | Power priority mechanism, fast and forward, |
MAC automatic learning and aging | |
IEEE802.3X Full-duplex and mode and | |
backpressure for Half-duplex mode | |
LED Indicator | LINK/ACT.100Mbps; POE Status Indicator; |
Power indicator; Extender | |
Working Environment | Working temperature: -10 ํ-- 55C ํ |
Weight | 1.2kg |
Size | 20mm*118mm*44mm (L*W*H) |
