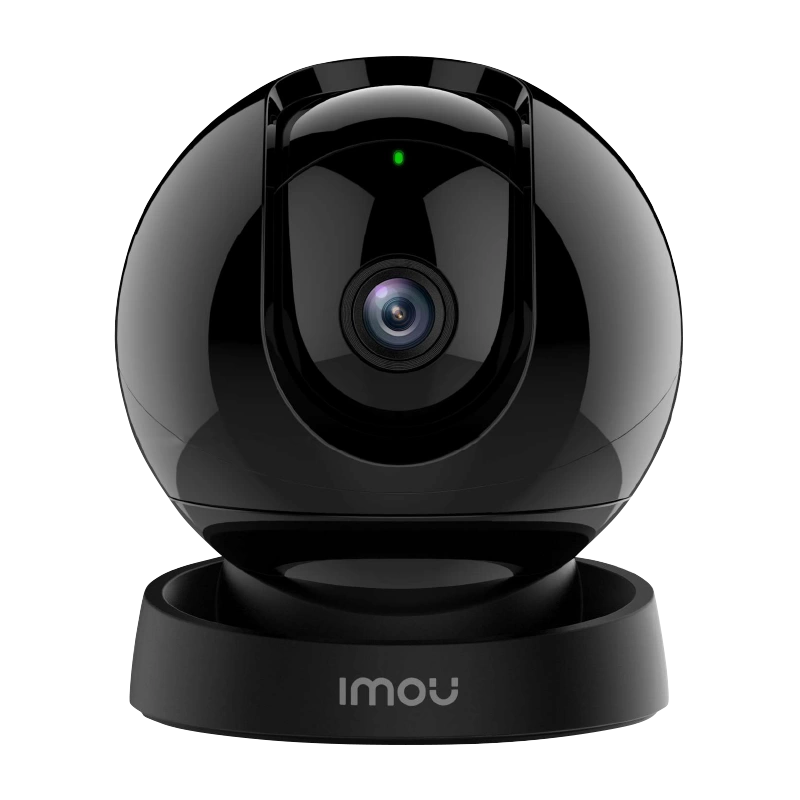

IPC-GK2DP-5C1W Rex 2D 5MP H.265 Wi-Fi Pan & Tilt Camera,3.6mm Fixed Lens,Two-way Audio,Built-in Mic & Speaker

Technical information

• General
• Color:

  Black

• Image Sensor:

  1/3” 5 Megapixel progressive CMOS

• Resolution:

  5MP (2688 x 1664)

• Resolution_surveillance:

  5 Mp

• Scanning System:

  Progressive

• IR backlight to:

  10 meters

• Camera
• Pan/Tilt/Rotation:

  0° - 355° (pan) and 0° - 90° (tilt)

• Lens
• Lens type:

  Fixed

• Focal Length:

  3.6 mm

• Zoom:

  Digital

• Angle of View:

  79° (H)

• Focus Control:

  Fixed

• Video
• Frame Rate:

  Up to 25/30 fps

• Video Compression:

  H.265/H.264

• Region of Interest:

  Yes

• Perimeter Protection
• AI Functions:

  ROI (Region of interest) , Smart Sound Detection , SMD (Human detection)

• Artificial Intelligence
• Motion Detection:

  Yes

• Smart Motion Detection Technology:

  Yes

• Detection:

  Human Detection

• Certification
• Certifications:

  CE

• Port
• Two-way Talk:

  Yes

• Built-in Microphone:

  Yes

• Built-in Speaker:

  Yes

• SD card:

  Micro SD up to 256 GB

• Network
• Wi-Fi:

  IEEE802.11b/g/n, 50m Open Field

• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Imou App: iOS, Android

• Interoperability:

  ONVIF

• Power
• Power Supply:

  DC 5V1A

• Power Consumption:

  < 3.5W

• Environment
• Operating Temperature:

  - 10°C to + 45°C

• Construction
• Dimensions:

  90 mm x 90 mm x 104 mm

• Net Weight:

  0.206 kg
