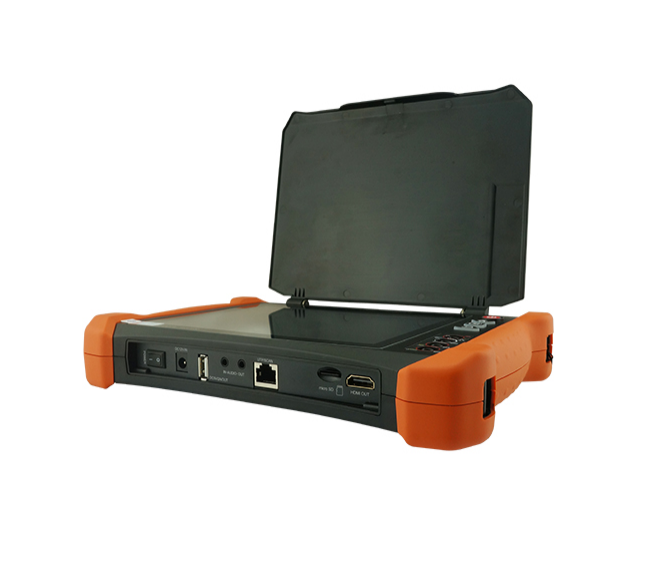

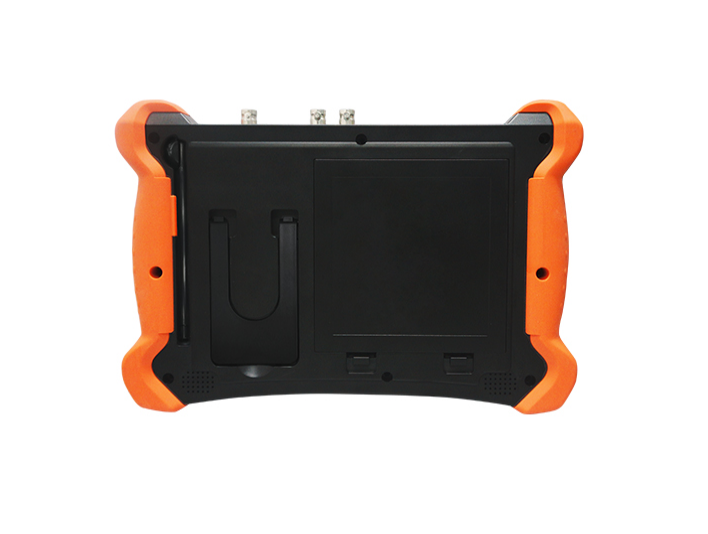

IP Camera Tester 8 inch retina touch screen Security IP CCTV Tester 8MP CVI/ TVI/ AHD 8MP EX-SDI HD-SDI, 3G-SDIcamera test SAV-X9 Series

* 8 inch retina touch screen, 2048*1536 resolution
* 8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI*
* H.265/H.264, 4K video display via mainstream
* Chrome browser, test and set Axis camera
* Anti-sunlight and screen protecting cover
* HDMI input support 4K 60FPS
* HDMI output support 4K
* DC12V 3A, DC 48V PoE power output
* Rapid ONVIF, auto view video and create test report
* RJ45 cable TDR test ,UTP cable quality test
* Backlight buttons, easier to operate in the dark
* 4 channels ONVIF video simultaneous display

Specifications

LCD	Item series	SAV-X9 series
	Size & Display resolution	New 8 inch touch screen with retina display ,2048*1536 resolution
Video Mode	CVBS	1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
		Analog video level meter, peak video signal level, SYNC signal level,   Color bar chroma level measurement
		PTZ control, RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc
		CVBS loop test	the tester send and receive color bar generator signal, check BNC cable
	IP camera test	IPC test /IPC viewer /Rapid Video/RTSP /ONVIF
		Rapid Video	can create testing report
		Hik test tool	pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
		Dahua test tool	Dahua camera test, modify the user name, password and IP parameters
	IP& CVBS test	IP& CVBS test at the same time, converter test from analog to digital with dual test window
	Coaxial HD test *	8MP TVI test,3840 x 2160P 15 FPS, UTC control&call OSD menu*
		8MP CVI test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu*
		8MP AHD test,3840 x 2160P 15FPS, UTC control & call OSD menu*
		8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu*
	HDMI input	1 channel HDMI input,support1080P
	Zoom Image	4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back
Analog Video out	color bar generator	Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
HDMI output	1 channel HDMI output, support 1920*1080P
	12V/3A power output	Output DC12V/3A power out ,supply temporarily power for the camera
Power output	PoE power output	48V PoE power output, max power 25.5W
	5V/2A power output	USB 5V 2A power output, as a power bank
Cable test	TDR cable test *	BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit.   measurement range 1.2KM(Built-in cable TDR test port, only for network cable   )
	Cable tracer	search BNC cable, network cable and telephone cable from the mess cables
	UTP cable test	Test UTP cable connection status and display on the screen. Read the   number on the screen
	RJ45 cable TDR test	test cable pair status, length, attenuation, reflectivity, impedance, skew   etc
TesterPlay	screen projection: tester, android version mobile phone and PC display at the same time
Network test	Trace route, Link monitor , DHCP server, port flashing , Ping test
Wi-Fi	Built in WIFI,speeds150M,display wireless camera image
Audio test	1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect   headphone
Data monitor	Captures and analyzes the command data from controlling device,also can send hexadecimal
PoE test	Measurement POE switch or PSE power supply voltage and cable connection status
Drop-down menu	You can select PoE power switch ,IP setting, WLAN switch, HDMI IN functions etc in any interface
External power   supply	DC 12V 2A
Battery	Built-in 7.4V Lithium polymer battery, 7000mAh
Rechargeable	After charging 6-7 hours, normal working time 13 hours
Operation setting	OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish etc
Auto off	1-30 (mins)
Working   Temperature	-10℃---+50℃
Working Humidity	30%-90%
Dimension/Weight	264mm x 182mm x 43mm / 1Kg
Below functions are customizable, full model is SAV-X9-MOVTADHS
M*	Digital Multimeter :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement
O*	Optical power meter, Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ~+10 dBm, for optical power testing and Fiber link loss relative measurement
V*	Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber's bending and breakage, test range 10KM
T*	TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM
ADH*	8MP CVI/ TVI/ AHD camera test
ADHS*	8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI camera tes
