HG-CSW10 4P8

HG-CSW10 4P8
HG-CSW10 4P8HG-CSW10 4P8
รหัสสินค้า SKU-04270
หมวดหมู่ HIVIEW SWITCH HUB
ราคา 4,104.00 บาท
สถานะสินค้า พร้อมส่ง
สภาพ สินค้าใหม่
ลงสินค้า 12 ม.ค. 2564
อัพเดทล่าสุด 12 ม.ค. 2564
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
PoE(1-8) up-Link(7-8)/LAN1-2, 1000Mbps Full Duplex; 100 or 1000Mbps Half Duplex, Network Interface: 10BASE-T or 1000BASE-TX RJ45 port of Ethernet Bandwidth:9.2 Gbps (no barriers), Network Latency (10 to 1000Mbps):, IEEE 802.3i 10BASE-T, Default: 1/2(+), 3/6(-); (Can Be Selected 4/5(+), 7/8(-)), Power input: AC 180~240V 120W / Power input: PoE port 1-8 1/2 (+52V)


  • Using CAT.5 network cable support power for the Access Point and IP camera
  • Networking standard IEEE802.3af/t
  • Long distance transmission and power supply, maximum transmission distance is 130m
  • Upload port support Auto MDI / MDIX
  • Forwarding Mode: Store-and-forward
  • Intelligent power distribution and secure power supply system
  • Power circuit protection function can protect environment
  • Zero configuration feature power supply is automatically supplied to the adaptive eguipment
  • Professional thunder design, Overtemperature protection, short circuit protection, high reliability, high stability
  • Nature cooling, amall, compact, mute, all the design are convenient for you put
  • Support: port no-load saving power

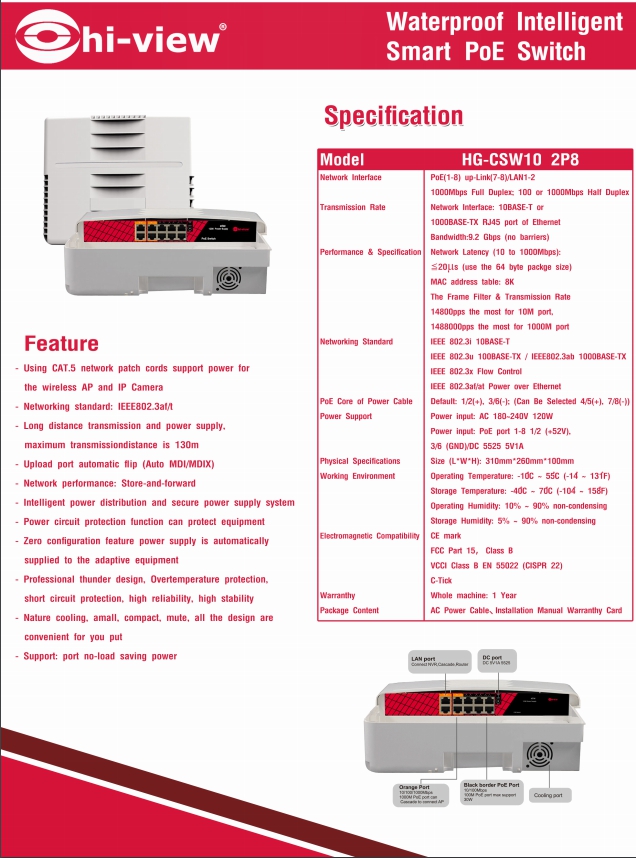

Model HG-CSW10 4P8
Network Interface PoE (1-8) up-Link (7-8) LAN1-2 1000Mbps Full Duplex; 100 or 1000Mbps Half Duplex
Transmission Rate

Network Interface: 10BASE-T or
1000BASE-TX RJ45 port of ethernet

Perfomance&Specification Bandwidth:9.2 Gbps (no barriers Network Latency (10 to 1000Mbps)< 20 (use the 64 byte packge size)
MAC address table: 8K
The frame Filter & Transmission Rate
14800pps the most for 10M port
148000pps the most for 1000M port"
Network Sandart EEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX/IEEE 802.3ab 1000BASE-TX
IEEE 802.3x Flow Control
IEEE 802.3af/at Power over Ethernet
PoE Core of Power Cable Default: 1/2(+), 3/6(-) (Can Be Selected 4/5(+), 7/8(-)
Power Support Power input: AC 180-240V/120W
Power output: PoE1-8Port1/2(+52V),3/6(GND),DC 5525 5V1A
Phisical Specification Size (LxWxH) 310mm x 260mm x 100mm
Working Environment Operating Temperature -10 ํC-+55 ํC (-14 ํ-131 ํF)
Storage Temperature -40 ํC-+70 ํC (-104 ํ-158 ํF)
Operating Humidity 10%-90% non-condensing
Storage Humidity 5%-90% non-condensing
Electromagnetic Compatibility CE mark
FCC Part 15, Class B
VCCI Class B EN 55022 (CISPR 222)
C-Tick
Warranthy Whole machine: 1 Year
Package Content AC Power Cable Installation Manual Warranthy Card
