Model	HG-SW17 3P16
Network Interface	PoE (1-16) up-Link (LAN 15-16) LAN
Network Standard	IEEE802.3af, IEEE802.3at
Long Distance Transmission	Max 130M.
Network performace	Store-and-forward
Transmission Rate	1000Mbps Full Duplex; 10 or 1000Mbps Half Duplex 10BASE-T or 1000BASE-TX RJ45 port of ethernet
Perfomance&Specification	Bandwidth:8.8 Gbps (no barriers Network Latency (10 to 1000Mbps)< 20 (use the 64 byte packge size) MAC address table: 8K The frame Filter & Transmission Rate 14800pps the most for 10M port 148000pps the most for 100M port"
Network Sandart	IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet
PoE Core of Power Cable	Default: 1/2(+), 3/6(-) (Can Be Selected 4/5(+), 7/8(-)
LEDs Light	PWR light always on
Power Support	Power input: AC 180-240V/250W Power output: PoE1-16Port1/2(+52V),3/6(GND),DC 5525 5V1A
Size (LxWxH)	430mm x 180mm x 45mm
Operating Temperature	-10 ํC-+40 ํC (-14 ํ-104 ํF)
Storage Temperature	-40 ํC-+70 ํC (-104 ํ-158 ํF)
Operating Humidity	10%-90% non-condensing
Storage Humidity	5%-90% non-condensing
Electromagnetic Compatibility	CE mark FCC Part 15, Class B VCCI Class B EN 55022 (CISPR 22) C-Tick
Lightning Protection	6KV
Port no-load Saving Power	Support
Package Content	AC Power Cable Installation Manual Warranthy Card

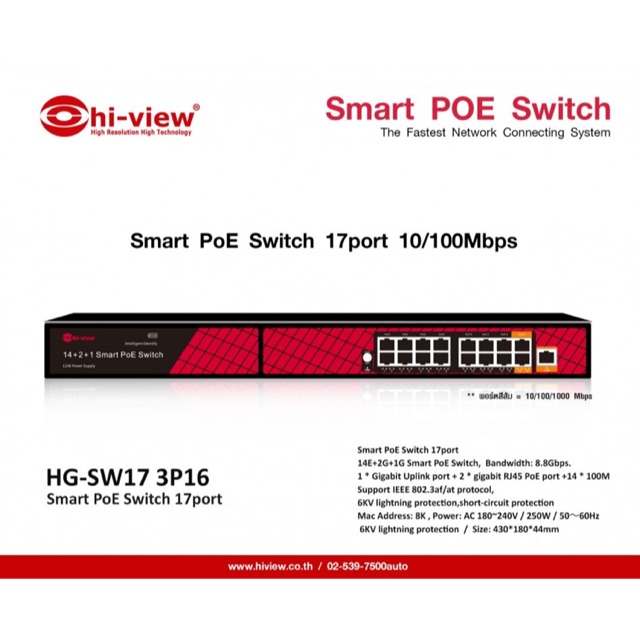

HG-SW17 3P16
