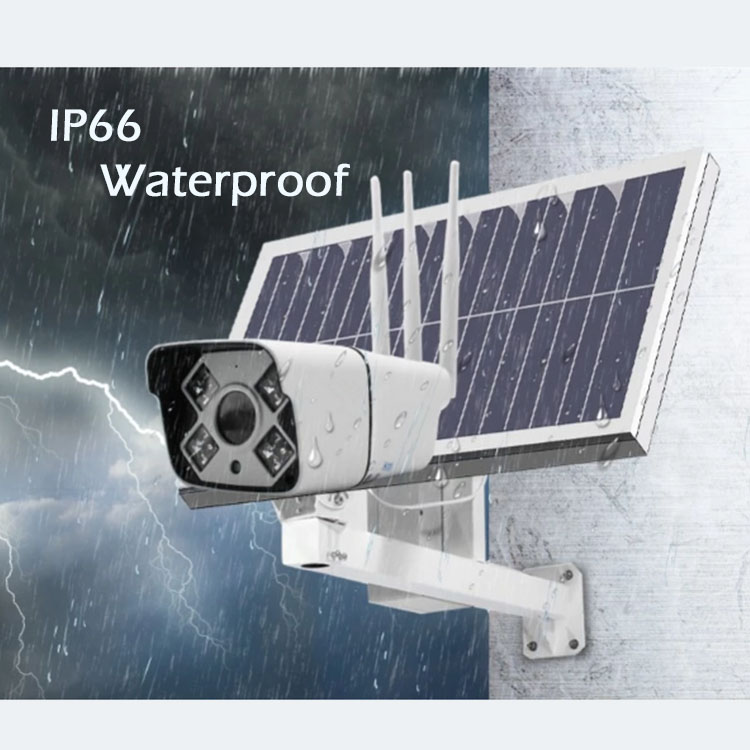

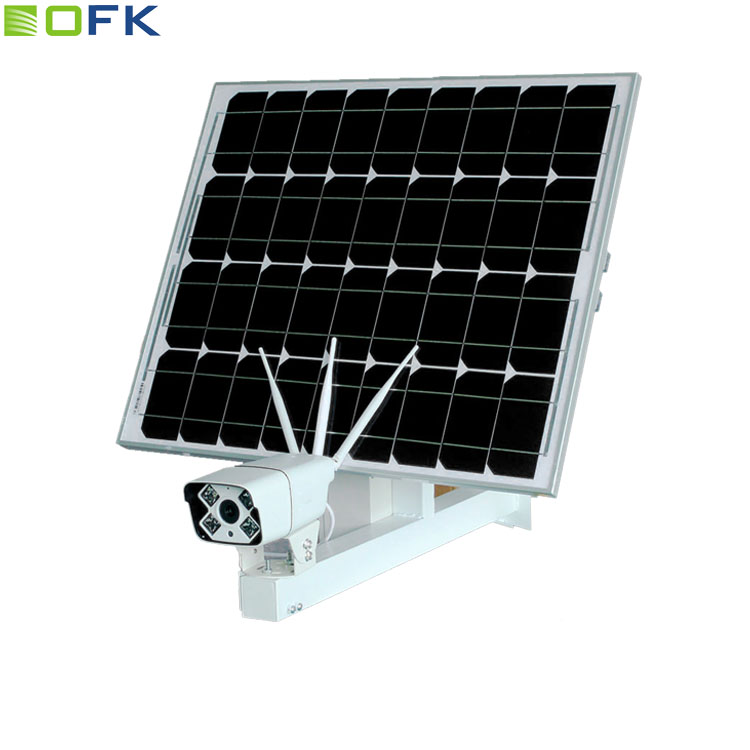

Solar CCTV Camera With 3G/4G iSIM Card 4G LTE CCTV Solar Camera รองรับซิม wifi แบตเตอรี่อยู่ได้ นาน 7 วัน 24 ชั่วโมง ในสภาพอากาศที่ไม่มีแดด หากมีแดด ก็จะชาร์ตตัวเองเรื่อยๆ (รองรับเมม 64GB)

Model:

WF1003-4G/13

WF1003-4G/20

Camera

Imaging sensor:

1/3" HD CMOS

1/2.9" HD CMOS

Single system:

PAL/NTSC adjustable

Scanning mode:

Progressive scanning

Illumination:

Color 0.08 lux,

black & white 0.008 lux

Color 0.02 lux,

black & white 0.002 lux

Lens:

Standard with 3.0 megapixel, 3.6mm/4mm lens

Day and night switch:

IR-CUT dual optical filters auto switch in day and night

Electronic shutter:

Manual / auto ( adjustable, 1 / 25 ~ 1 / 4

000 seconds)

White balance:

Auto / manual

DNR

3D-DNR

IR source:

4pcs  array IR

IR distance:

30- 50meters

4G

FDD-LTE

B1/B2/B3/B4/B7/B8/B12/B13B/B18/B19/B20/B26

TDD-LTE

B38/B39/B40/B41

WCDMA/TD-SCDMA

B1/B2/B4/B5/B8/B34/B39

GSM/GPRS/EDGE

900/ 1800MHz

Standard compression

Imageing compression

H.264

Compression

Video bit rate

128 Kbps -- 8 Mbps; CBR / VBR adjustable


Max image size

1280*960

1920*1080

Frame size

1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps;
704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps

1920 x 1080 @ 30 fps;
1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps;
704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps

Image adjustment

Through IE can adjust Saturation,
brightness, contrast,sharpness

Image mirroring

Horizontal mirroring, vertical mirroring

scene

Auto, indoor, outdoor

Digital enlarge

Can achieve through NVR, P2P HDmonitoring management software

Function

Storage

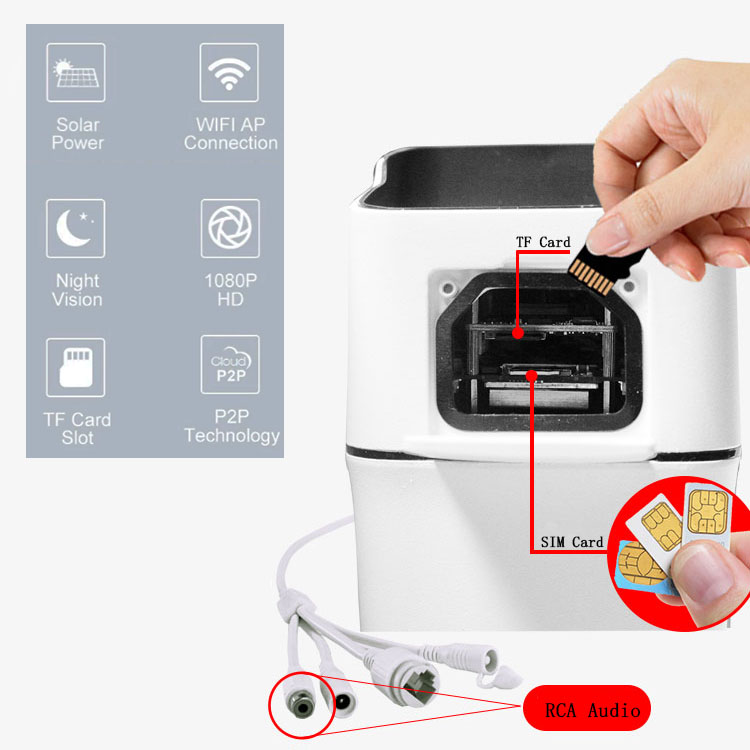

Support TF card storage 64G

Interface protocol

onvif

Support protocol

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,

RTP, RTSP, RTCP, PPPoE, NTP, UPnP,

SMTP, SNMP, IGMP, 802.1x, QoS, IPv6,

Bonjour (SIP, SRTP optional)

Intelligent alarm

Motion detection, mask alarm, network cable
break , IP address conflict, storage card
is full, storage device is wrong

wifi

Support WIFI function

Interface

Communication interface

1pc RJ45 10M / 100M Adaptive Ethernet Port

Basic Parameter

Power input

DC 12V±10%

Power mption

4W (IR off) / 9.8 W (IR on)

Work environment

35℃; - 60℃, humidity is less than 95% (no condensation)

size

183mm*91mm*66mm
