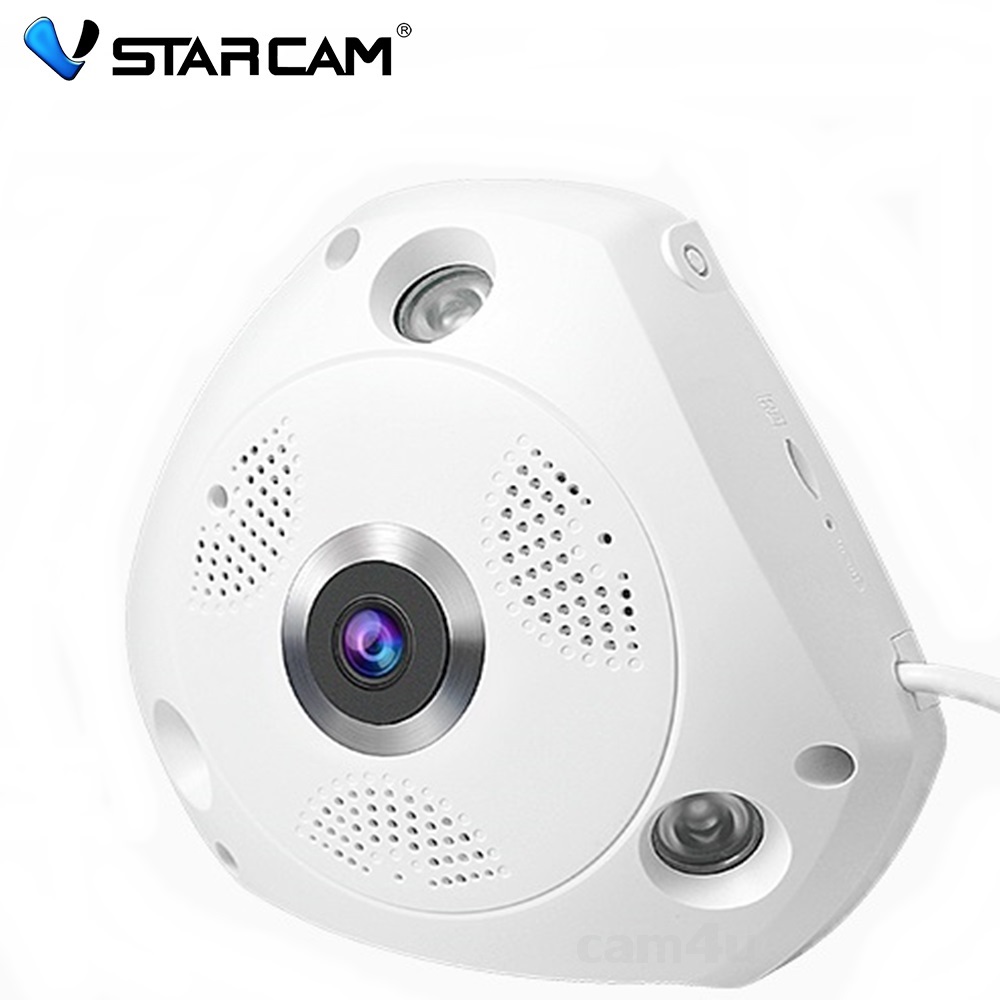

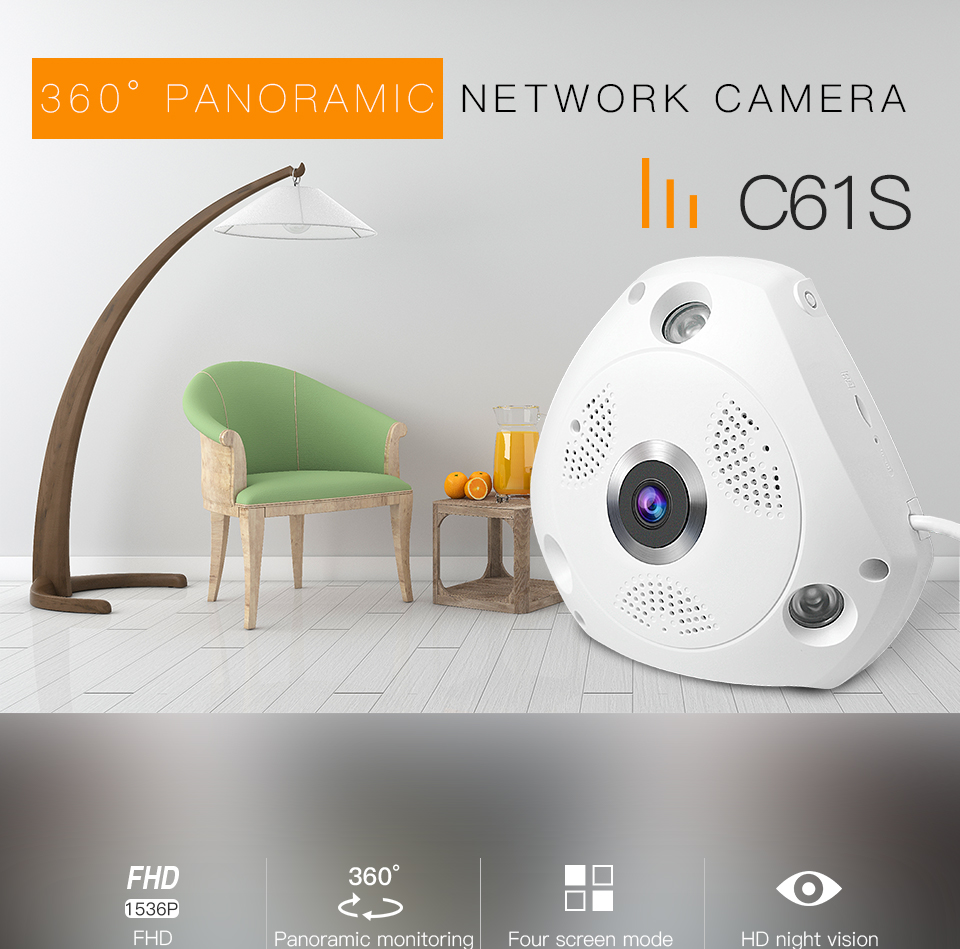

VSTARCAM Wireless Fisheye 2.4 MP รุ่น C61S

System

Operation system

Embedded Linux OS

Online visitor

Support 4 visitors at the same time

Image Capture

Image sensor

1/2.4 inch 1536p Progressive Scan CMOS

Minimum Illumination

0.3~0.5Lux(color mode),0Lux(B&W mode)

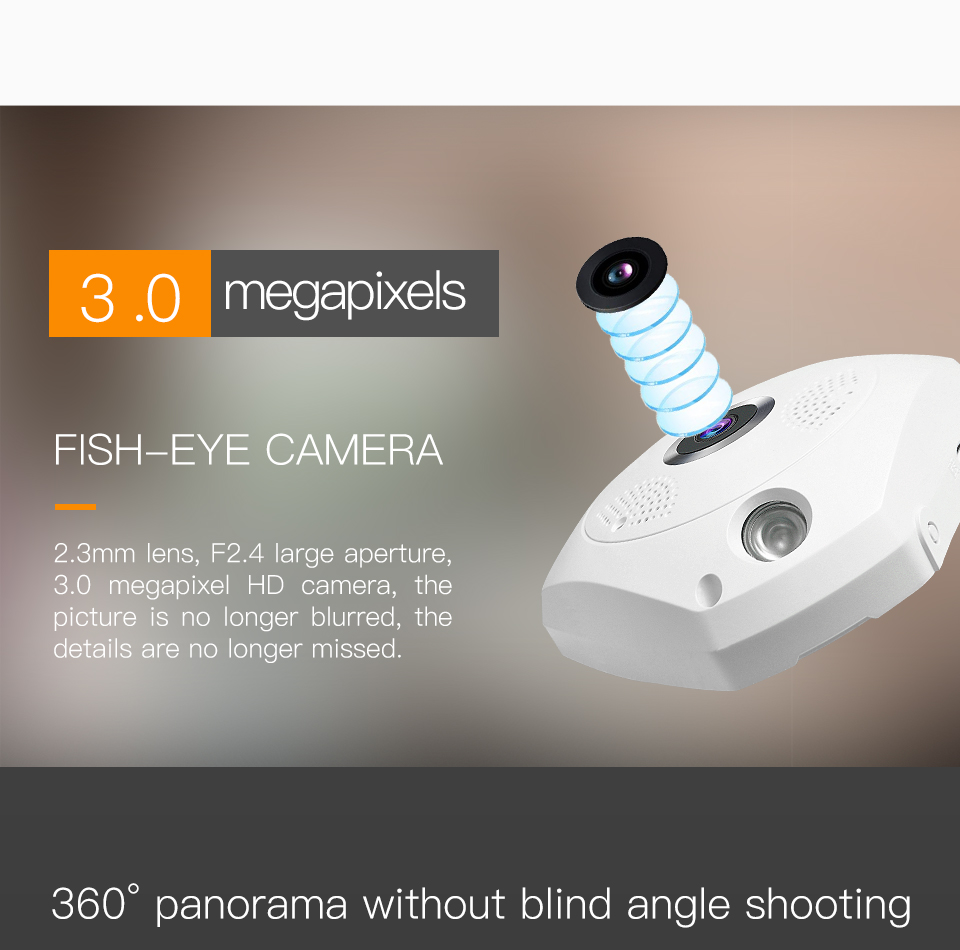

Lens

2.3mm@F2.4

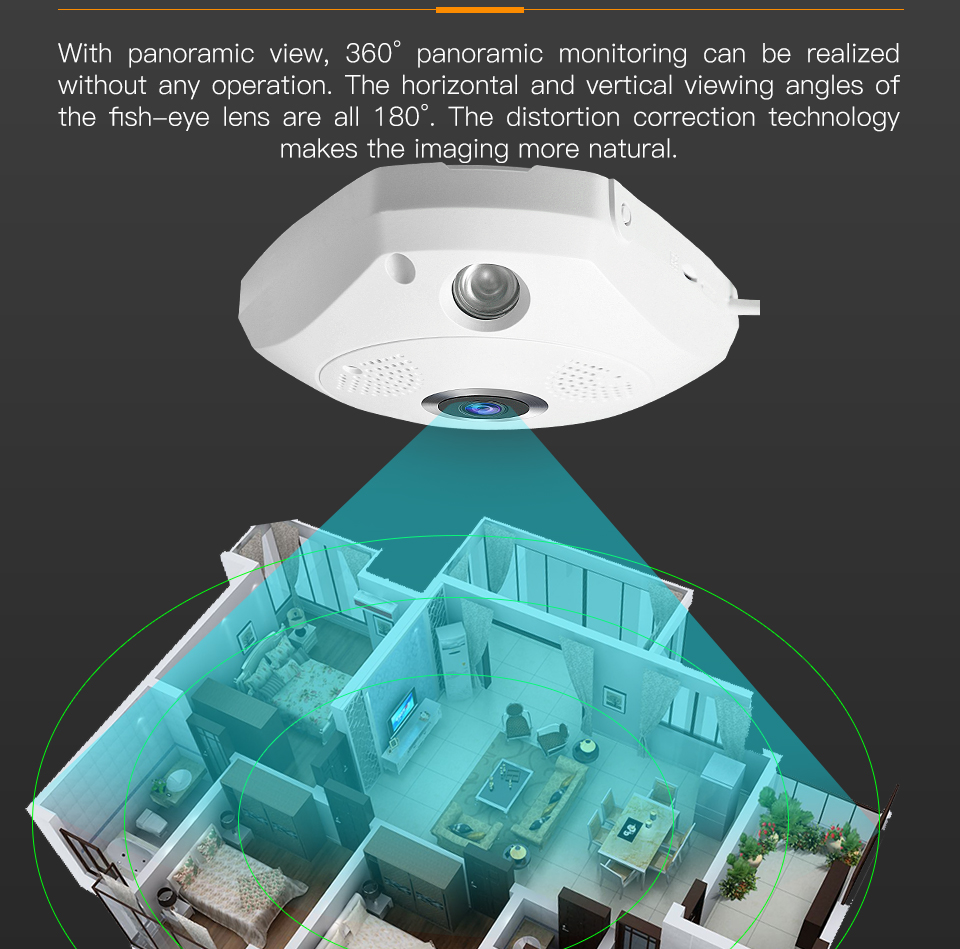

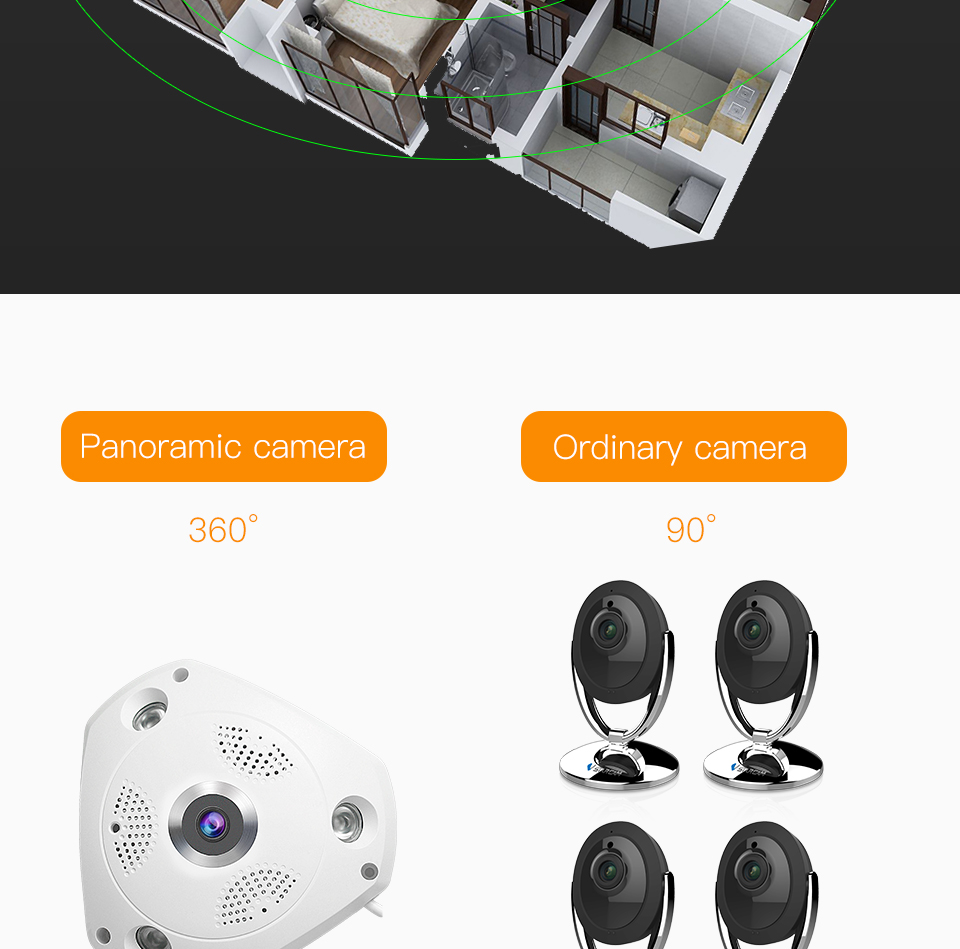

View Angle

180˚

Nightvision

Dual Filter,IR-Cut，3pcs 850nm  IR LED，

IR irradiation distance:5~10m

Video

Encode format

H.264 main profile@levels:4.0/Motion-JPEG

Three Stream

Main Stream:1536p(1536X1536)@15fps

Bit Rate

128～4096kbps

Maximum frame rate

15fps

Image adjustment

Contrast、Brightness、Saturation、Hue

Audio

Input

Built-in -38dB Microphone

Output

Built-in 8Ω1W speaker

Sampling frequency

8KHz

Sampling Bit wide

16bit

Encode format/Bit rate

ADPCM/32kbps

Network

Ethernet

10Base-T / 100Base-TX, RJ45 connector

Protocols

TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc

Wireless LAN

IEEE802.11b/g/n

Wireless LAN Frequency

2.4~ 2.4835GHz

Wireless LAN security

64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption

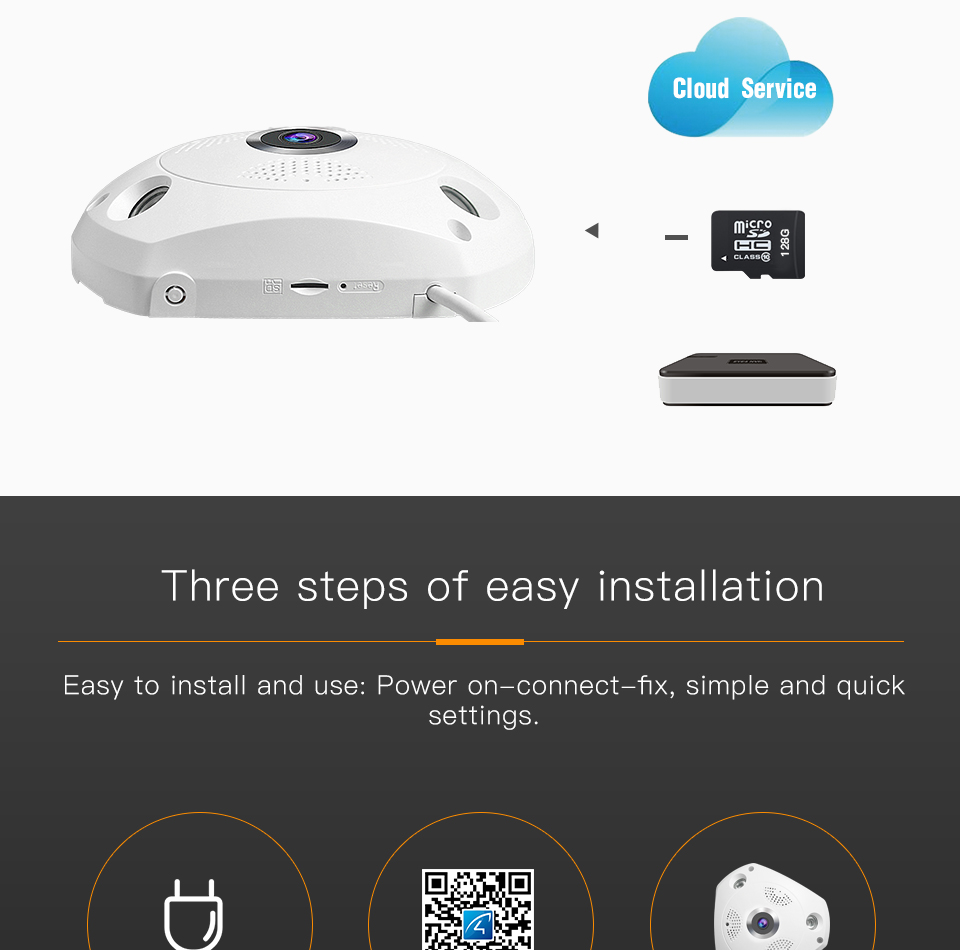

Memory

Socket

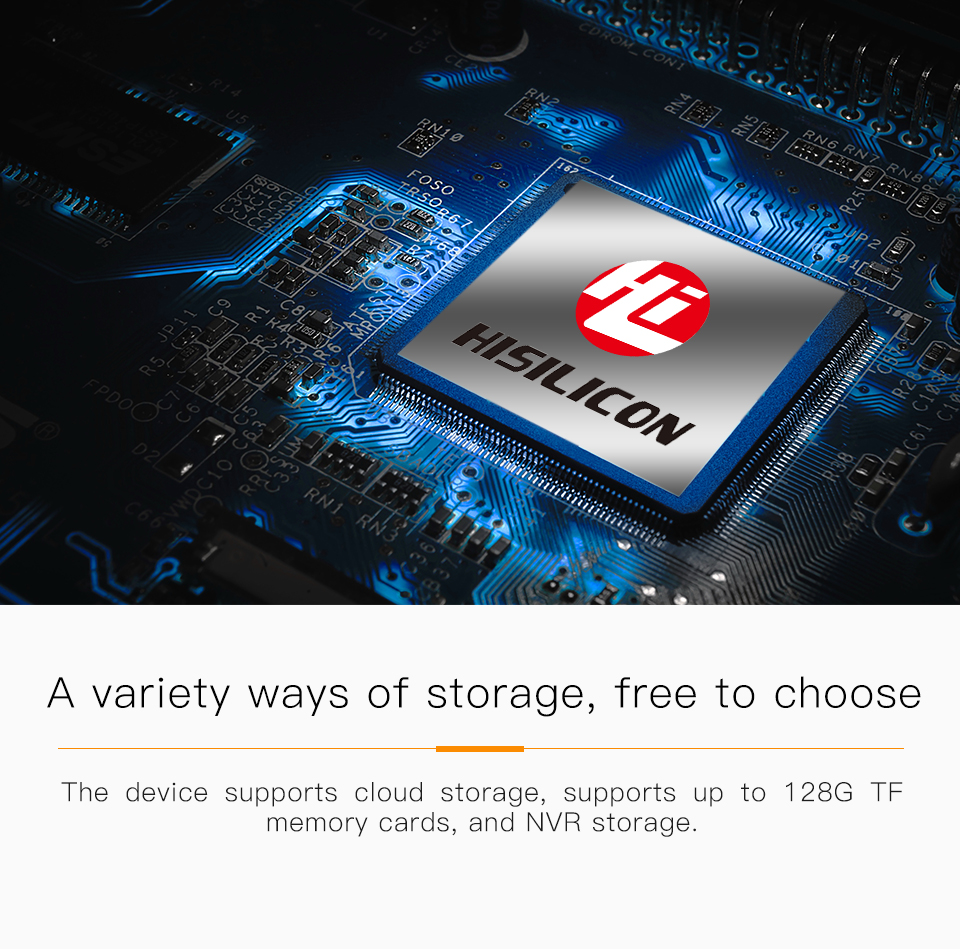

TF Push-push socket,Maximum support 128GB

Alarm

Alarm Trigger

Motion detection

Physical

Environmental

Rated voltage

DC12V±5%

Power consumption

Typical:6.24W(IR LED on)

Operating condition

Temperature:-10～50℃,humidity:＜90%

Weight

Gross：TBDg(Note: in kind prevail)

Package size

196X183X110mm  (L×W×H)
