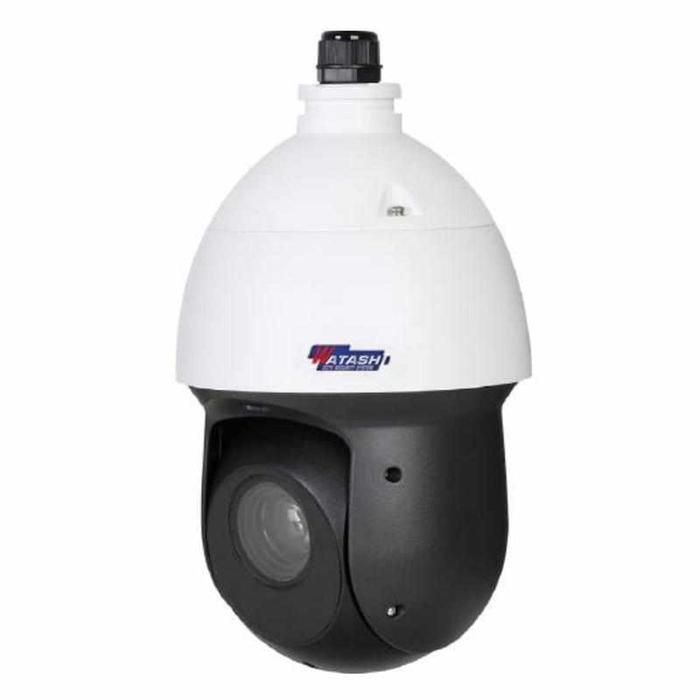

กล้องวงจรปิด รุ่น WSP078N-S2 2.0 MP 25x Starlight IR PTZ Network Camera

Camera

Image Sensor : 1/2.8” Exmor R CMOS

Effective Pixels : 1920(H) x 1080(V), 2 Megapixels

Scanning System : Progressive

RAM/ROM : 1024M/128M

Min. Illumination : Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)

S/N Ratio : More than 50dB

IR Distance : Distance up to 100m (328ft)

IR On/Off Control : Auto/Manual

IR LEDs : 6

Lens

Focal Length : 4.8mm~120mm

Max Aperture : F1.6 ~ F4.4

Focus Control : Auto / Manual

Angle of View : H: 59.2? ~ 2.4?

Optical Zoom : 25x

Close Focus Distance : 100mm~ 1000mm

PTZ

Pan/Tilt Range : Pan: 0? ~ 360? endless; Tilt: -15? ~ 90?,auto flip 180?

Manual Control Speed : Pan: 0.1? ~200? /s; Tilt: 0.1? ~120? /s

Preset Speed : Pan: 240? /s; Tilt: 200? /s

Preset : 300

PTZ Mode : 5 Pattern, 8 Tour,Auto Pan,Auto Scan

Power up Action : Auto restore to previous PTZ and lens status after power failure

Idle Motion : Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Speed Setup : Human-oriented focal Length/ speed adaptation

Protocol : DH-SD

Intelligence

Auto Tracking : N/A

IVS (optional) : Tripwire, Intrusion,Abandoned/Missing, Face Detection

Video

Compression : H.265/H.264 / MJPEG

Streaming Capability : 3 Streams

Resolution : 1080P(1920?1080)/720P(1280?720)/D1(704?576/704?480)/CIF(352?288/352?240)

Frame Rate : Main Stream 1080P/720P(1~50/60fps), Sub Stream 1 D1/CIF(1 ~ 25/30fps), Sub Stream 2 720P/D1/ CIF (1 ~ 25/30fps)

Bit Rate : H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~10240Kbps

Day/Night : Auto(ICR) / Color / B/W

Backlight Compensation : BLC / HLC / WDR(120dB)

White Balance : Auto,ATW,Indoor,Outdoor,Manual

Gain Control : Auto / Manual

Noise Reduction : Ultra DNR (2D/3D)

Motion Detetion : Support

Region of Interest : Support

EIS : N/A

Defog : Support

Digital Zoom : 16x

Flip : 180
