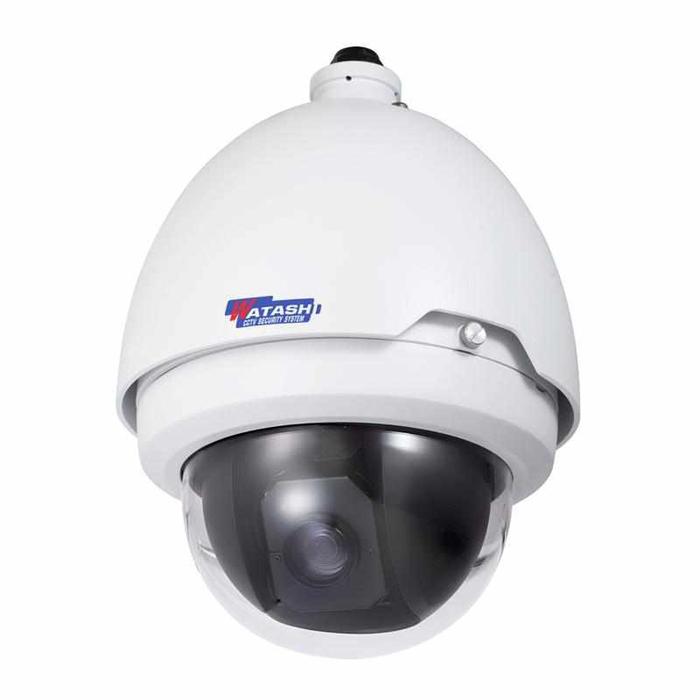

WSP033 20X 1MP 720P HDCVI IR PTZ Dome
FEATURES
- 20x optical zoom
- Max 50/60fps@720P resolution
- DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
- Control over coaxial cable, long distance real-time transmission
- HD and SD switchable
- Max 300°/s pan speed, 360° endless pan rotation
- Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
- Built-in 2/1 alarm in/out
- Support intelligent 3D positioning with DH-SD protocol
- IP66, OSD
SPECIFICATION
Camera |
Image Sensor |
1/3” Exmor CMOS |
Effective Pixels |
1280(H) x960(V) |
Scanning System |
Progressive |
Electronic Shutter Speed |
1/1~ 1/30,000s |
Min. Illumination |
Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4; 0Lux (IR on) |
S/N Ratio |
More than 50dB |
Resolution |
25/30/50/60fps@720P |
Video Output |
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
Camera Features |
Day/Night |
Auto(ICR) / Color / B/W |
Backlight Compensation |
BLC / HLC / DWDR(Digital WDR) |
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
Gain Control |
Auto / Manual |
Noise Reduction |
2D/3D |
Privacy Masking |
Up to 24 areas |
Digital Zoom |
16x |
Lens |
Focal Length |
4.7mm~94mm(20x Optical zoom) |
Max Aperture |
F1.4 ~ F2.6 |
Focus Control |
Auto / Manual |
Angle of View |
H: 54.1°~ 3.2° |
Close Focus Distance |
100mm~ 1000mm |
PTZ |
Pan/Tilt Range |
Pan: 0° ~ 360°endless;Tilt: -2° ~ 90°,auto flip 180° |
Manual Control Speed |
Pan: 0.1° ~300° /s;Tilt: 0.1° ~150° /s |
Preset Speed |
Pan:300° /s;Tilt: 200° /s |
Preset |
80(DH-SD), 255(Pelco-P/D) |
PTZ Mode |
5 Pattern, 8 Tour,Auto Pan,Auto Scan |
Speed Setup |
Human-oriented focal length/ speed adaptation |
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
Idle Motion |
Activate Preset/Scan/Tour/Pattern if there is no command in the specified period |
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
Audio |
Interface |
1 channel In |
Auxiliary Interface |
RS485 |
1 |
Alarm |
2/1channel In/Out |
General |
Power Supply |
AC 24V/3A(±10%) |
Power Consumption |
9.5W,21W(Heater on) |
Working Environment |
-40oC ~ 60oC/ Less than 90% RH |
Ingress Protection |
IP66 |
Vandal Resistance |
IK10(optional) |
Dimension(W× D× H) |
Φ222(mm) x 322(mm) |
Weight |
6.8kg |
