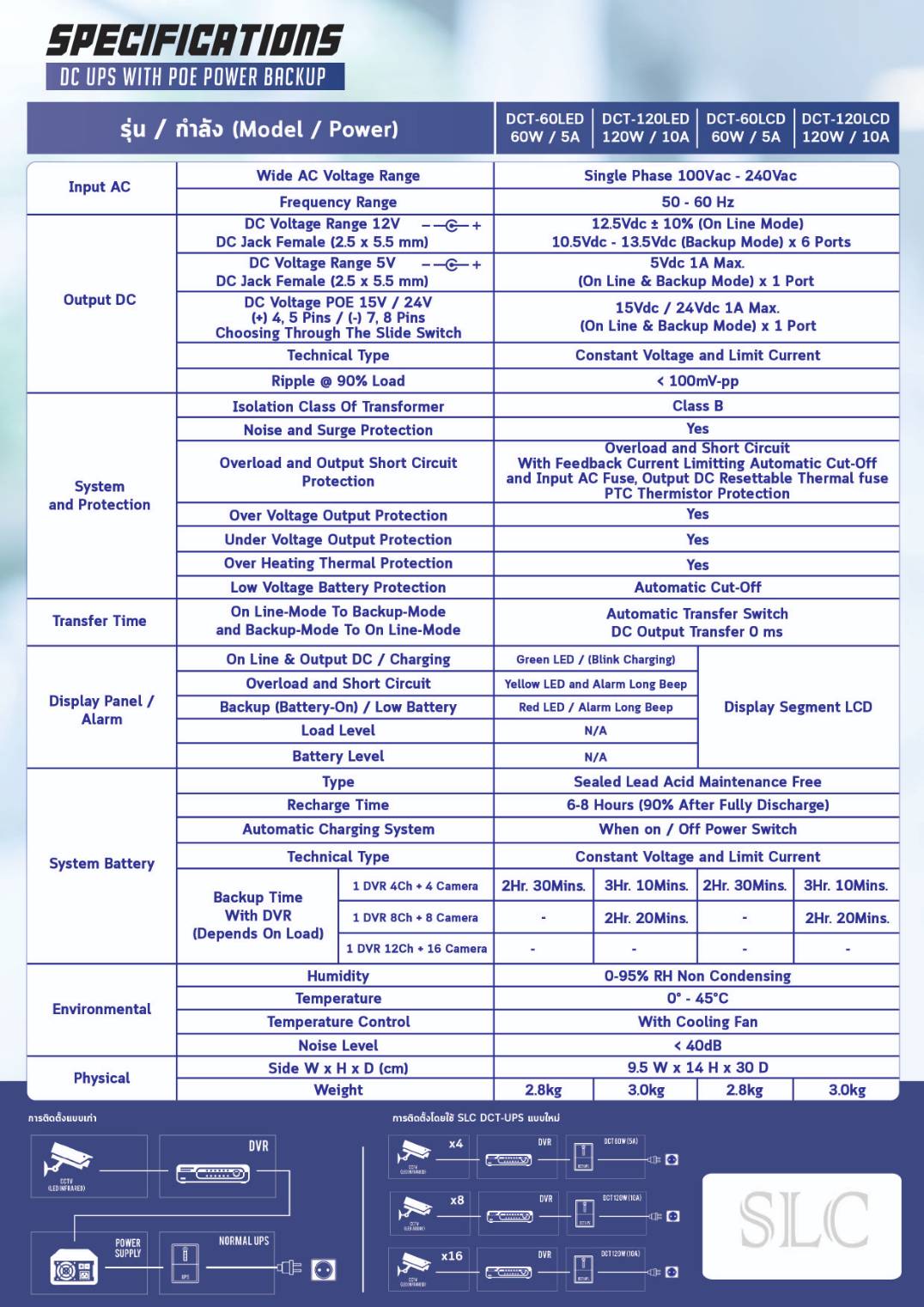

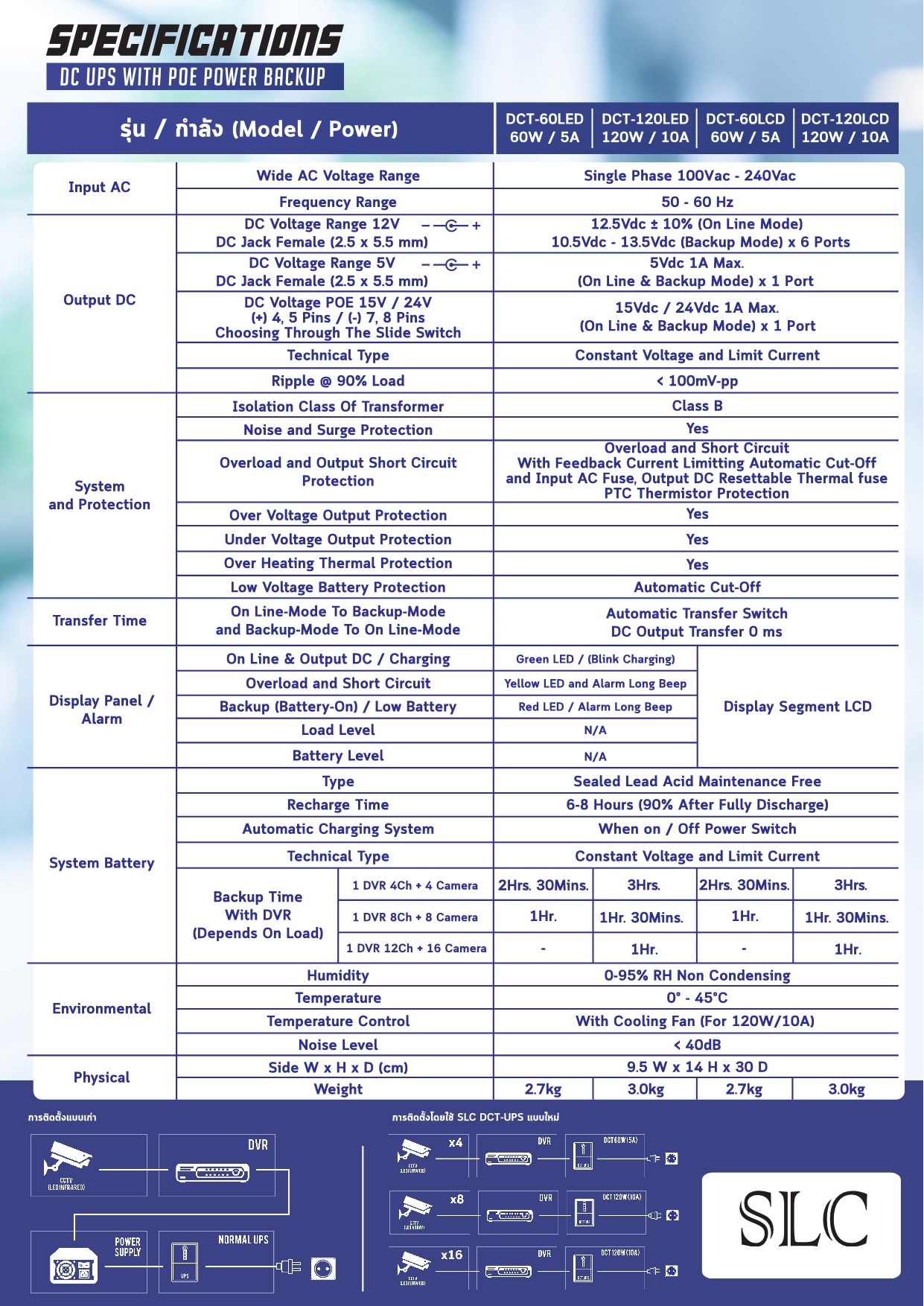

*Input AC
Wide AC Voltage Range
     : Single Phase 100Vac - 240Vac

Frequency Range
     : 50-60 Hz

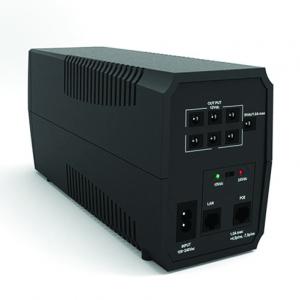

*Output DC
DC Voltage Range 12V DC Jack Female (2.5 x 5.5 mm)
     : 12.5Vdc +/- 10% (On Line Mode)

     : 10.5Vdc - 13.5Vdc (Backup Mode) x 6 Ports

DC Voltage Range 5V DC Jack Female (2.5 x 5.5 mm)
     : 5Vdc 1A Max (On Line & Backup Mode) x 1 Port
DC Voltage POE 15V / 24V (+) 4, 5 Pins / (-) 7, 8 Pins Choosing Through The Slide Switch
     : 15Vdc / 24Vdc 1A Max (On Line & Backup Mode) x 1 Port
Technical Type
     : Constant Voltage and Limit Current

Ripple @ 90% Load
     : < 100mV-pp

*System&Protection
Isolation Class Of Transformer
     : Class B
Noise and Surge Protection
     : YES
Overload and Output Short Circuit Protection
     : Overload and Short Circuit with Feedback Current Limitting Automatic Cut-Off and Input AC Fuse, Output DC Resettable Thermal fuse PTC Thermistor Protection
Over Voltage Output Protection
     : YES
Under Voltage Output Protection
     : YES

Over Heating Thermal Protection
     : YES
Low Voltage Battery Protection
     : Automatic Cut-Off

*Transfer Time
On Line-Mode To Backup-Mode and Backup-Mode To On Line-Mode
    : Automatic Transfer Switch DC Output Tranfsfer 0 ms

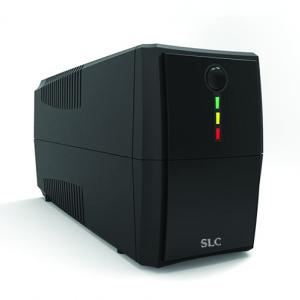

*Display Panel / Alarm

On Line & Output DC / Charging
    : Green LED / (Blink Charging)
Overload and Short Circuit
    : Yellow LED and Alarm Long Beep

Backup (Battery-On) / Low Battery
    : Red LED / Alarm Long Beep

*System Battery
Type
     : Sealed Lead Acid Maintenance Free
Recharge Time
     : 6-8 Hours (90% After Fully Discharge)
Automatic Charging System
     : When on / Off Power Switch

Technical Type
     : Constant Voltage and Limit Current
Backup Time With DVR (Depends On Load)
     : 1 DVR 4Ch + 4 Camera

*Environmental
Humidity
     : 0-95% RH Non Condensing
Temperature
     : 0° - 45°C
Temperature Control
     : With Cooling Fan

*Physical
Side W x H x D (cm)

Weight
