| Technical Specification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

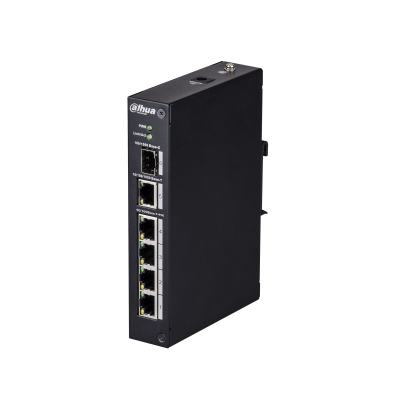

| Model | DH-PFL2106-4ET-96 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port | 1*100/1000 Base-X
1*10/100/1000 Base-T 4*10/100 Base-T(PoE power supply) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Power Consumption | Port1,2,3≤30W, Port4≤60W, Total≤96W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Protocol | IEEE802.3af, IEEE802.3at, Hi-PoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Switching Capacity | 6.8Gbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packet Forwarding Rate | 3.57Mpps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packet Buffer Memory | 1Mb | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MAC Table Size | 8K | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Flow Control | Enable by default | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Application Humidity | 10%~90% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | DC48~57V power adapter | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lightning Protection | Common Mode 4KV
Differential Mode 2KV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Temperature | ﹣30°C~65°C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 480g | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension(W×D×H) | 150mm×100mm×30mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Transmission Performance: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Take CAT5E/CAT6 as an example (Max. DC resistance<10Ω/100m) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DH-PFL2106-4ET-96 | Port 1/2/3
(IEEE802.3af/at) |
Port 4
(Hi-PoE) |
LED Indicator | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 100m | Bandwidth(Mbps) | 100 | 100 | IEEE mode: Normally on | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Load capacity(W) | 25.5 | 60 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 200m | Bandwidth(Mbps) | 100 | 100 | E100 mode: On for 3 seconds, off for 1 second | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Load capacity(W) | 25.5 | 42 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 300m | Bandwidth(Mbps) | 100 | 100 | E100 mode: On for 3 seconds, off for 1 second | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Load capacity(W) | 25.5 | 28 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 500m | Bandwidth(Mbps) | 10 | 10 | E10 mode: On for 1 seconds, off for 1 second | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Load capacity(W) | 17 | 17 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 800m | Bandwidth(Mbps) | 10 | 10 | E10 mode: On for 1 seconds, off for 1 second | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Load capacity(W) | 10 | 10 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
